The package offered by Festo, consisting of the modular automation system CPX-E and the universal valve terminal VTUG, is more compact and cost-efficient than other control cabinet solutions.

• Compact and space-saving
• Easy mounting plus lower tubing connection costs
• Improved signal processing performance
• NE21-specific certifications
• UL/CSA, C-Tick
• IO-Link®
• Attractively priced
• Explosion protection: for use in zone 2

The modular control system CPX-E is an automated system for factory and process automation. It consists of individual function modules which enable a flexible, modular design: depending on the module combination, the system can be configured as a purely remote I/O system with bus module or as a control system with control unit. The CPX-E's distinguishing features are its rapid signal processing and its compact assembly.

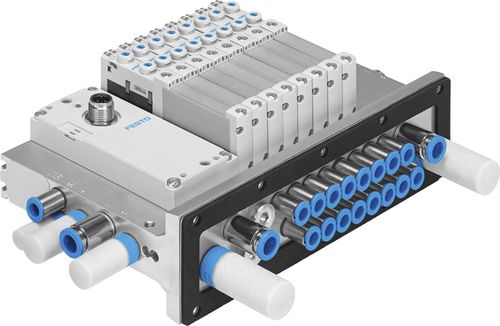

The universal valve terminal VTUG has been specially designed for installation in control cabinets and to save space. Thanks to the new manifold rail variant, check valves and fixed flow restrictors, the valve terminal is a true all-rounder in control cabinets. The installation of the valve terminal in a control cabinet wall with the new manifold rails means that tubing within the control cabinet is unnecessary. The variant with a front outlet direction has a clearly visible LED indicator and inscription label holder, enabling direct access to the manual override function. The practical hot-swap function allows individual valves to be replaced quickly during operation without the valve terminals having to be depressurised, which could result in production downtime.

Parameter Name	Parameter Value
Signal type	digital
Bus	EtherNet/IP, EtherCAT, ProfiNet, Modbus, PROFIBUS
Type	remote
Applications	automation PLC
Number of inputs/outputs	multi-channel
Mounting	direct mounting
Other characteristics	compact flexible
