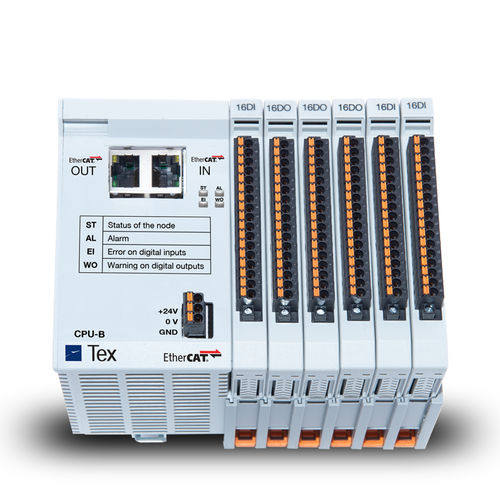

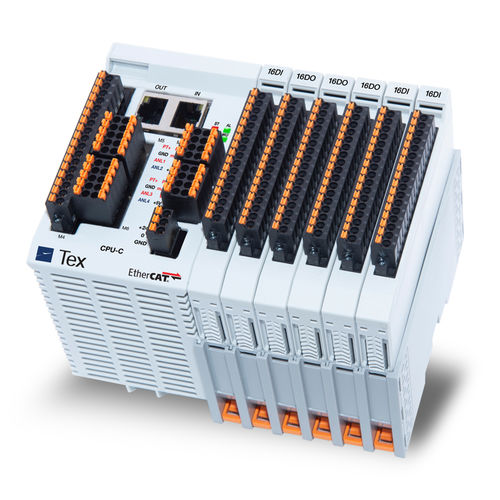

TC REMOTE I/O is a modular system, with DIN guide fixing, consisting of three types of couplers for CANopen or EtherCAT, plus three types of 16 points digital I/O modules. One of the two EtherCAT couplers is equipped with: 8+8 fast digital I/O (minimum feedback time= 1 ms), four 12 bit analog inputs, two +/-10V analog outputs and two interfaces for 5V Line Driver ABZ incremental encoders.

If TC Remote I/O is combined with Power controllers its available resources are seen, programming wise, as local resources to the PAC; in this way Tex Automation can supply the client his complete network project, with both the configuration files and the synoptic scheme with all the available resources.

Parameter Name	Parameter Value
Signal type	digital, analog
Bus	CANopen, EtherCAT
Type	remote
Applications	for sensors automation PLC temperature for HMI interface for motors position
Number of inputs/outputs	16-I/O 8 digital inputs 16 digital inputs 8-I/O 4 analog inputs 16 digital outputs 8 digital outputs 2 analog inputs
Mounting	DIN rail-mounted embedded
Size	mini
Other characteristics	compact configurable slave programmable flexible custom
