Product Feature:
Flexible protocol module and I/O module plug and play, features as below:
1. designed with a max of 64 modules, each I/O module is built with 16 channels and each have LED indicator.
2.supports an overall of 1024 I/O points and hot plug;
3. the I/O module back plate cable can be extended to 20 meters to be used in multiple panels;
4. WTP is from -30~75℃ with a warranty of 2 years;
5. high speed 12M back plate bus, with 64 digital quantity modules of a refreshing period at 2ms and analog quantity is 3.4ms;

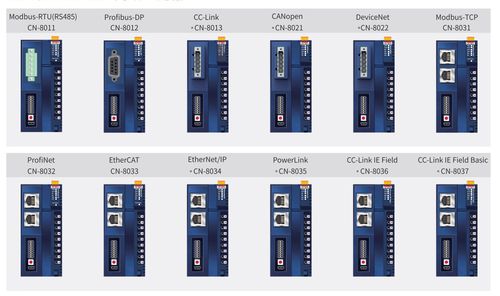

6.Supports Modbus-RTU, Modbus-TCP, Profinet, Profibus - DP (DPV0), EtherCAT, EtherCAT and others up to 12 kinds of the main stream protocol.

Product Details

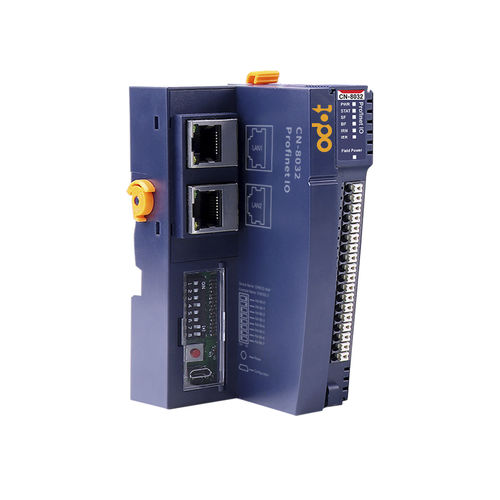

ODOT remote I/O is a very cost-effective I/O module with 12 kinds of main stream protocol in the market. It could be hung with a max of 64 modules, and each I/O module is built with 16 channels and each channels have LED indicator. So it could supports an overall of 1024 I/O points with hot plug.
Odot I/O module is bulit with car grade rules and the WTP covers from -30 to 75℃ with a warranty of 2 years.
ODO I/O is designed with high speed 12M back plate bus, carrying 64 digital quantity modules of a refreshing period at 2ms and analog quantity is 3.4ms.

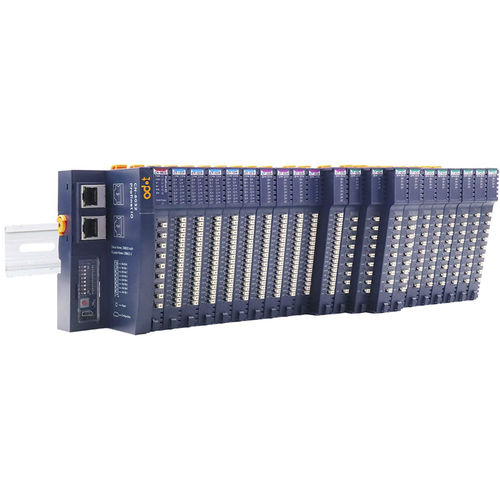

With the design of Din-rail installation, this compact design, multiple protocols supported remote I/O module could assure your application much more competitive in the market.

Parameter Name	Parameter Value
Signal type	digital, analog
Bus	Modbus RTU, EtherNet/IP, Modbus TCP, serial, CC-Link, Modbus, CANopen, ProfiNet, EtherCAT, PROFIBUS-DP, CAN, WLAN, DeviceNet, PROFIBUS, 8 inputs
Type	remote network distributed
Applications	for HMI interface for sensors automation PLC voltage temperature for control of hydraulic valves current for the food industry for 8 encoder energy monitoring and control for temperature sensors for motors for lighting control for thermocouples decentralized distribution absolute pressure centralized automation for RTD
Number of inputs/outputs	with relay output 16-I/O 8 digital inputs 16 digital inputs 8-I/O 32-I/O 4 analog outputs 32 digital outputs 4 digital inputs 32 digital inputs 4 analog inputs 8-channel 4 digital outputs 8 analog inputs 16-channel 16 digital outputs 8 digital outputs
Mounting	DIN rail
Size	mini
Other characteristics	relay compact configurable rugged slave programmable IP insulated high-density flexible TCP/IP Ethernet universal custom
