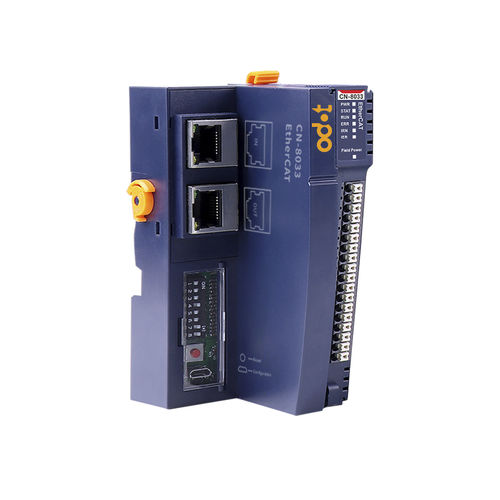

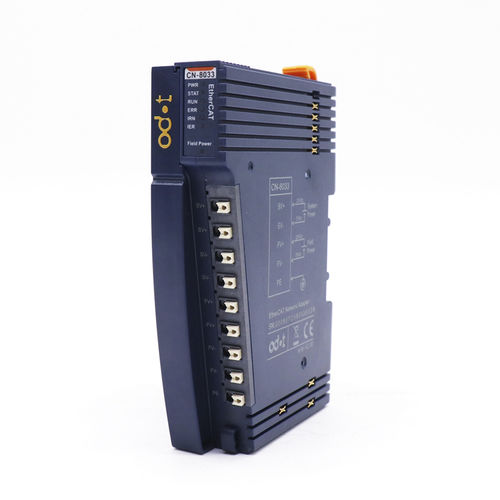

The CN-8033 EtherCAT I/O module supports standard EtherCAT protocol access. The adapter supports a Max. input of 1024 bytes and a Max. output of 1024 bytes. It supports 32 pcs of extended IO modules.

Hardware Specification
System Power： Nominal 24Vdc, Range-9-36Vdc
Protection: Overcurrent Protection, Reverse Protection: YES
Power Consumption：110mA@24Vdc
Internal BUS Supply Current：Max.2A@5VDC
Isolation：System Power to Field Power Isolation
Field Power Supply - Power Supply：22~28V（Nominal 24VDC）
Field Power Supply Current：Max. DC 8A
I/O Modules supported：32 pcs
Wiring：Max.1.5mm²(AWG 16)
Mounting Type：35mm Size DIN-Rail
Size：115*51.5*75mm
Weight：130g
Environment Specification
Operational Temperature：-40~85℃
Operational Humidity：5%~95% RH(Condensation)
Protection Level：IP20
EtherCAT：Parameter
Protocol：EtherCAT
Process data area：Input Max.1024 Bytes, Output Max.1024 Bytes
Network Interface：2 RJ45
Speed：10/100Mbps, MDI/MIDX, Full-Duplex
Max.Bus Legenth：100m

Parameter Name	Parameter Value
Signal type	digital, analog
Bus	RJ45, EtherCAT, WLAN
Type	distributed remote network safety
Number of inputs/outputs	16-I/O 8-I/O 32 digital inputs 32 digital outputs 32-I/O
Mounting	DIN rail
Size	mini
Other characteristics	compact configurable rugged programmable slave IP flexible
