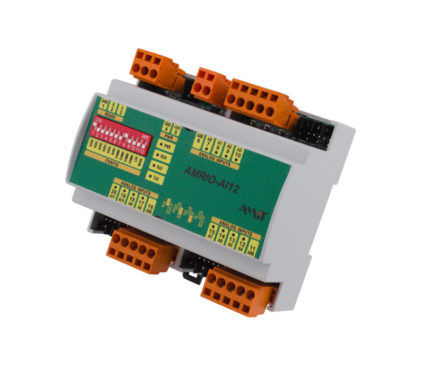

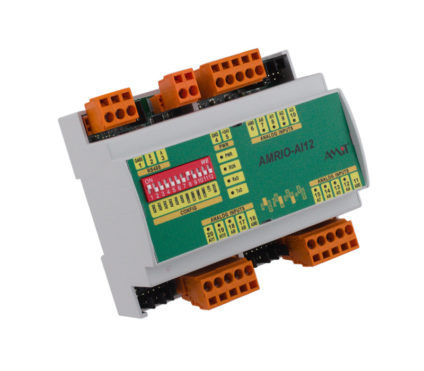

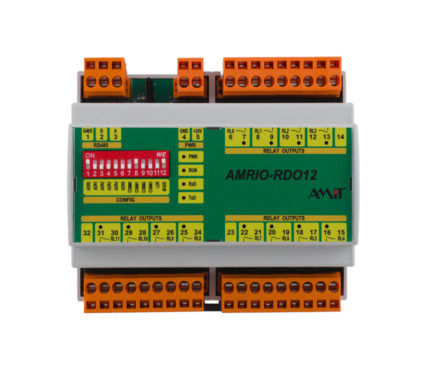

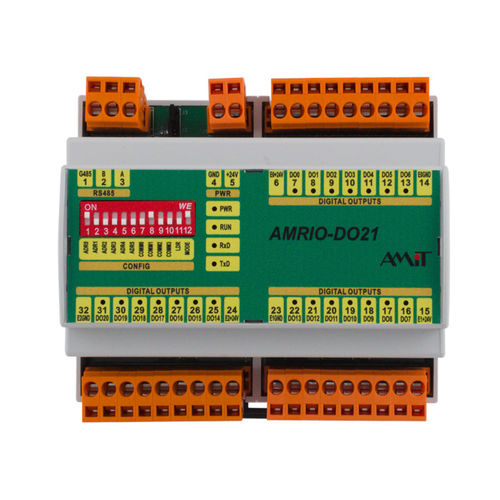

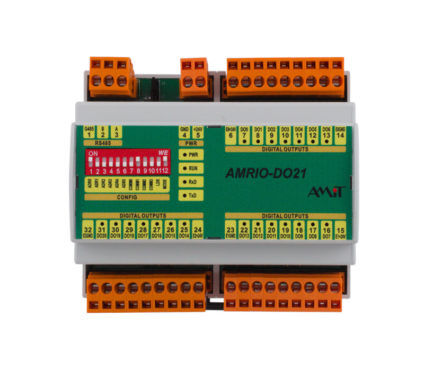

The AMRIO series input/output extension modules are used to easily extend I/O signals of control systems. Modules from this series feature both ARION and MODBUS RTU communication protocols – the selection of the required protocol is done with a flip of a switch. In setups with both AMiT systems and systems developed by different manufacturers, it is appropriate to use the MODBUS protocol.

The I/O modules on offer either support a single type of I/O signal or a combination of signals. In terms of installation, modules mount onto a 35 mm DIN rail, require 24 V DC and are operable in a temperature range of -20 to 70 °C.

The AMRIO series replaces previous module series – DM-xx (ARION protocol) and DMM-xx (MODBUS RTU protocol).

-intelligent extension I/O modules based on ARION and MODBUS RTU communication
-up to 63 modules connected to a single control system at once
-extending the control system by up to 1,512 digital or 756 analogue inputs
-system support in all AMiT control systems
-detection of communication failures
-public communication protocol ARION
-supported parametrisation in the DetStudio development environment

Parameter Name	Parameter Value
Signal type	digital, analog
Bus	Modbus RTU, RS-485
Type	remote distributed
Applications	automation for sensors PLC voltage temperature current for temperature sensors for RTD decentralized distribution
Number of inputs/outputs	8 analog inputs 12-I 24-I/O 8-O
Mounting	DIN rail
Other characteristics	programmable
