Remote display SB600 series

Remote display SB600 series

Remote display SB600 series

About

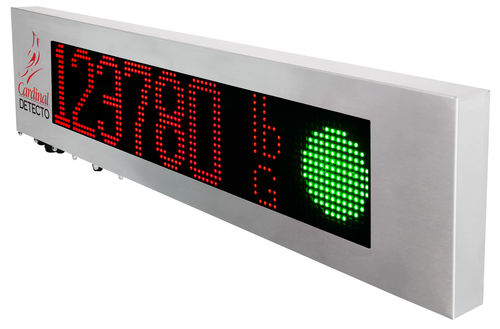

Cardinal Scale’s model SB600 remote display features a high-visibility, full-color graphics display with double-row LEDs in large 6-inch/15.25-cm high characters. The durable IP65-rated stainless steel enclosure is weatherproof for use in a wide variety of environments. The SB600 offers 1,280 RGB high-intensity LEDs for maximum visibility in all lighting conditions and integrated 6-inch/15.25-cm high red/green traffic light standard for directing vehicles on and off the scale. Multiple scales plus total weight readouts can all be displayed simultaneously. The SB600 can plug and play with virtually any weight indicator and it offers optional SnapStream wireless connectivity with Cardinal Scale weight indicators. The onboard intensity light sensor automatically adjusts to ambient light with 10 levels of brightness (total darkness to direct sunlight). The SB600 comes with a two-piece bracket: a mounting bracket attached to the display and a pole/wall bracket that it locks into. The convenient bottom access panel with slide-out controller board provides easy access to internal wiring.

Large and small fonts included with alpha descriptors: Units (lb, kg, T, t) and Mode (G, N).

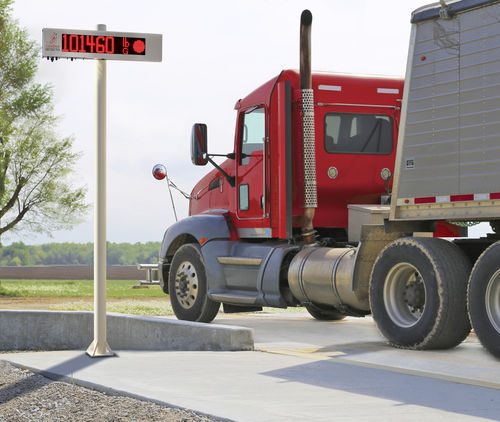

Integrated 6-inch/15.25-cm high red/green traffic light standard for directing vehicles on and off the scale.
Multiple scale plus total weight readouts all displayed simultaneously (optional).
Four-way directional arrows standard for traffic coordination (optional). Arrows move in constant motion for traffic direction.
High-intensity mode for maximum visibility in sunlight (ambient sensor automatically adjusts from total darkness to direct sunlight).



PARAMETERS

Parameter Name Parameter Value
Type
  • LED
  • alphanumeric
  • color
Format
6-digit
Applications
  • remote
  • for weighing devices
Other characteristics
  • RS-232
  • RS485
  • wireless
  • RS422
  • RGB
Width (mm)
10900 - 10900
Height
25 cm (9.8425 in)
