The mean, green demolition machine. The most environmental-friendly diesel demolition robot on the planet.
BROKK 520D is a beast. With 40 percent more hitting power and the ability to size up attachments, this diesel-powered demolition robot outperforms everything its size. It’s stronger, faster and has a longer reach – while keeping key compact dimensions of its predecessor Brokk 400D. Adding the Brokk SmartConcept – the reliability of SmartPowerTM, the clever features of SmartDesignTM, the ergonomics and productivity of SmartRemoteTM – this machine is optimal for the heaviest of tasks in any industry. Meeting new emission standards (EPA Tier 4 Final/EU Stage IV) it is also the greenest diesel demolition robot on the planet.
40% more demolition power with the BHB 705
Meets the toughest emission standards
Rugged and reliable Brokk SmartPowerTM
Brokk SmartDesignTM and SmartRemoteTM
Compatible with all Brokk 400 and Brokk 500 attachments

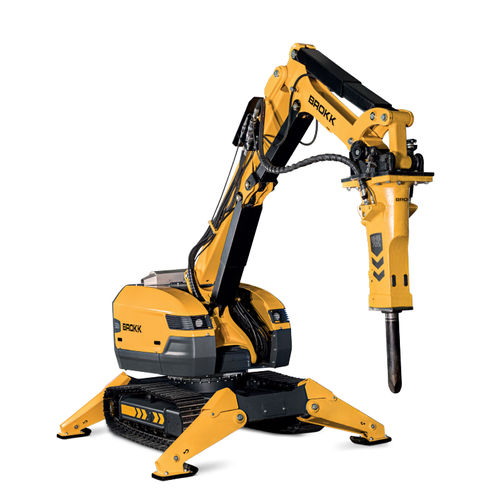

Hydraulic breaker in illustrations.
Load and stability diagram available on request
BHB 705
PERFORMANCE
Slewing speed
16 sec/360°
Transport speed, max.
3,4 km/h; 2.1 mph
Climbing inclination, max.
30°
HYDRAULIC SYSTEM
Hydraulic system capacity
145 l; 38 US gal
Pump type
Variable load-sensing
System pressure
18,0 MPa; 2 611 psi
Increased pressure to attachment
24,0 MPa; 3 481 psi
Pump flow
130 l/min; 34 US gal/min
DIESEL PERFORMANCE
Type 1)
Kohler Four-cylinder, water-cooled, 4-stroke engine
Engine
55 kW; 74 hp diesel EPA Tier 4, EU Stage IV
Engine oil volume
11,5 l; 3 US gal
Type 2)
Kubota Four-cylinder, water-cooled, 4-stroke engine
Engine***
55 kW; 74 hp diesel EPA Tier 3, EU Stage
PARAMETERS
