This demolition robot adds 40 percent of smart power to size up the effectiveness of your next project.

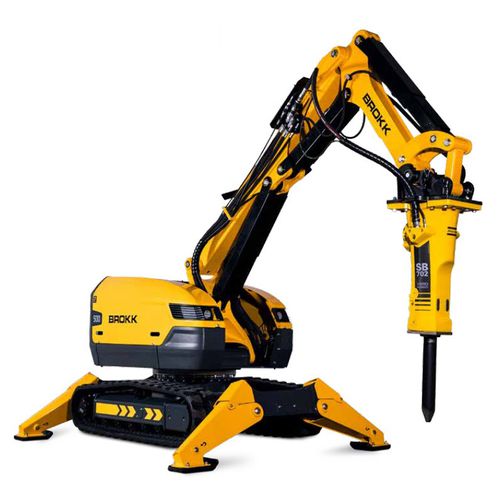

The Brokk 500 demonstrates 40% more demolition power than its predecessor, the Brokk 400. With its new reinforced design and extended reach, it sets a new industry standard for power-to-size ratio in its segment. In addition, new technology allows for the use of heavier attachments such as the powerful BHB 705 breaker, despite its weight and size being nearly the same as the Brokk 400. When it comes to the Brokk 500, more really is more.
40% more demolition power with the BHB 705 breaker

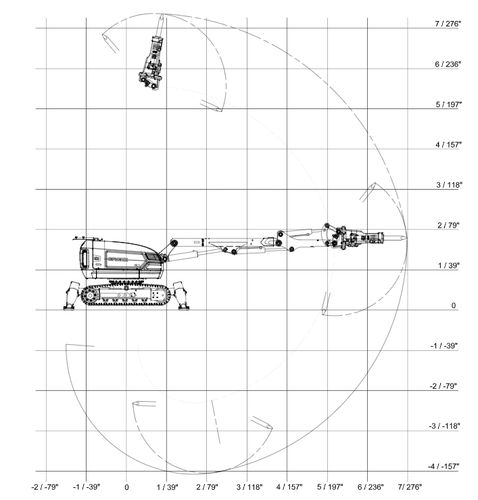

Increased work reach and radius
41 kW Brokk SmartPowerTM electrical system
Brokk SmartDesignTM and SmartRemoteTM
Compatible with all Brokk 400 attachments
Hydraulic breaker in illustrations.
Load and stability diagram available on request.
BHB 705
PERFORMANCE
Slewing speed
16 sec/360°
Transport speed, max.
2,5 km/h; 1.6 mph
Climbing inclination, max.
30°
HYDRAULIC SYSTEM
Hydraulic system capacity
145 l; 38 US gal
Pump type
Variable load-sensing
System pressure
18,0 MPa; 2 611 psi
Increased pressure to attachment
24,0 MPa; 3 481 psi
Pump flow 50Hz
115 l/min; 30 US gal/min
Pump flow 60Hz
130 l/min; 34 US gal/min
POWER SYSTEM
Power technology
SmartPower
Electric motor type
ABB
Power*
41 kW
Recommended fuse size*
63 A
Starting device
Soft start/Direct start
PARAMETERS
