About
A muscle, reach and size ratio masterpiece. And now, this demolition robot also outsmarts the competition.
There is a new weight class in town. The all new BROKK 200 demolition robot breaks new ground, packing the power of the Brokk 280 into a 2,1 ton compact package. This 27,5 kW Brokk SmartPowerTM machine carries tools one weight class above its size and brings the power to match it. Paired with the BHB 305 breaker or the all-new Darda CC480 crusher, it is a brutal demolition robot. And of course it comes with the new signature Brokk SmartDesignTM and SmartRemoteTM capabilities.
Demolition power of a 3 ton Brokk in a 2 ton package
Exceptionally small footprint for its power and reach
27,5 kW Brokk SmartPowerTM electrical system
Brokk SmartDesignTM and SmartRemoteTM
Built and optimized for heavy high-performance tools

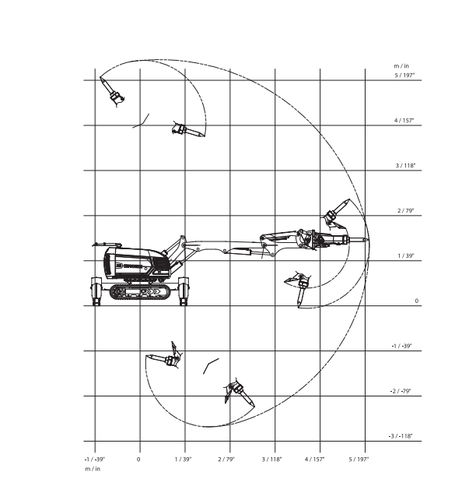

Hydraulic breaker in illustrations.
Load and stability diagram available on request.
BHB 305
PERFORMANCE
Slewing speed
10 sec/360°
Transport speed, max.
2,1 km/h; 1.3 mph
Climbing inclination, max.
30°
HYDRAULIC SYSTEM
Hydraulic system capacity
85 l; 22.5 US gal
Pump type
Variable load-sensing
System pressure
18 MPa; 2 611 psi
System pressure, increased to attachment, max.
25 MPa; 3 626 psi
Pump flow 50Hz
85 l/min; 22 US gal/min
Pump flow 60Hz
102 l/min; 27 US gal/min
POWER SYSTEM
Power technology
SmartPower
Electric motor type
ABB
Power*
27,5 kW
Recommended fuse size*
63 A
Starting device
Soft start/Direct start
CONTROL SYSTEM
Control type
SmartRemote, portable control
Signal code
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Specifications |
|
