Upgrading the market-leading demolition robot with unbeatable power, new accessibility and smart, ergonomic design.
If you liked the Brokk 160 you’ll love the BROKK 170. Taking the best from Brokk 160 and adding the full Brokk SmartConcept – the power of SmartPowerTM, the reliability of SmartDesignTM, the ergonomics and productivity of SmartRemoteTM – the Brokk 170 is the ultimate demolition robot for the construction industry. And don’t let the size fool you. This new, lightweight machine gives you 15 % more power, packs a mean wallop with the breaker and brutal force with the crusher. Still, it’s compact enough to get through standard door openings. A lean, mean demolition machine.
New benchmark in breaker and crusher performance
24 kW Brokk SmartPowerTM electrical system
Brokk SmartDesignTM and SmartRemoteTM
Can operate on 32 A fuse (and of course 63 A)
Compatible with Brokk 160 attachments

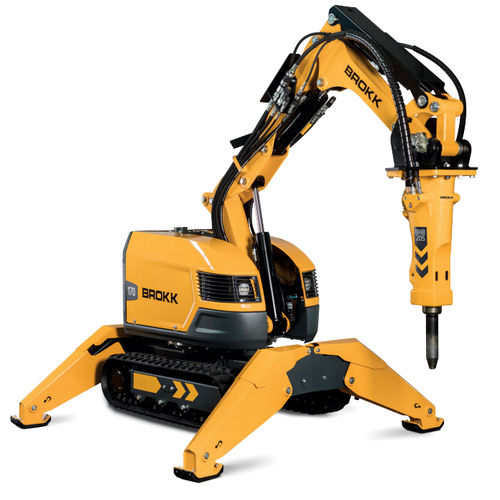

Hydraulic breaker in illustrations.
Load and stability diagram available on request.
BHB 205
PERFORMANCE
Slewing speed
10 sec/360°
Transport speed, max.
2,1 km/h; 1.3 mph
Climbing inclination, max.
30°
HYDRAULIC SYSTEM
Hydraulic system capacity
85 l; 22.5 US gal
Pump type
Variable load-sensing
System pressure
18 MPa; 2 611 psi
Increased pressure to attachment
25 MPa; 3 626 psi
Pump flow 50Hz
69 l/min; 18 US gal/min
Pump flow 60Hz
83 l/min; 21 US gal/min
POWER SYSTEM
Power technology
SmartPower
Electric motor type
ABB
Power*
24 kW
Recommended fuse size*
63 A
Starting device
Soft start/Direct start
CONTROL SYSTEM
Control type
SmartRemote, portable control
Signal code
Digital
Transfer
PARAMETERS
