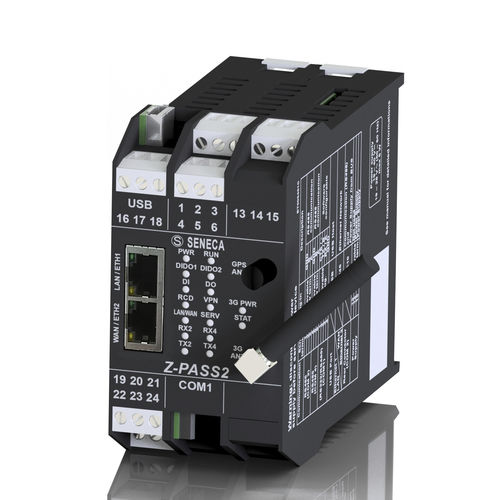

Z-PASS2-S is an advanced control units IEC 61131 with IDE Straton and 3G+/ETH VPN router. This powerful RTU, that in Z-PASS2-S-E version supports also the energy protocols IEC 60870-5-101 - IEC 60870-104 - IEC 61850, provides maximum reliability for remote maintenance and telecontrol where you need to manage and monitor the data. The embedded 3G+ modem allows a redundant connection in plant automation applications, power generation control, renewable energy management (biomass, solar, wind, etc.) and smart grid systems. Z-PASS2-S is configurable as a web server and TCP-IP node, this device can easily be integrated into SCADA, EMS and monitoring web platforms.

Power supply DC: - 11..40 Vdc; 19..28 Vac
Consuption: - 4 W @ 24Vac, Max 6 W
Insulation: - 1500 Vac
Status indicators: - Power supply
Rx-Tx serial communication
Link e Data transfer via Ethernet
status PLC
Operating temperature: - -20 °C..+55 °C
Dimensions WxHxD: - 52,5x100x112 mm
Operating mode: - Tunnel P2P/P2MP/TCP/UDP
VPN
3G+/Ethernet industrial router
Telecontrol / remote maintenance with local IP
Ethernet ports: - nr. 2 10/100Tx su RJ45 front
Serial ports: - nr. 1 RS232 or nr. 1 RS485 (check version) baud rate max 115k
nr. 1 RS485, baud rate max 115k on IDC10
nr. 1 RS485, baud rate max 115k
USB port: - nr. 1 microUSB host on side connector
Modem 3G+ embedded: - Yes, UMTS, HSDPA (dual band), EDGE, GPRS, GSM (quad band)

Parameter Name	Parameter Value
Applications	remote
