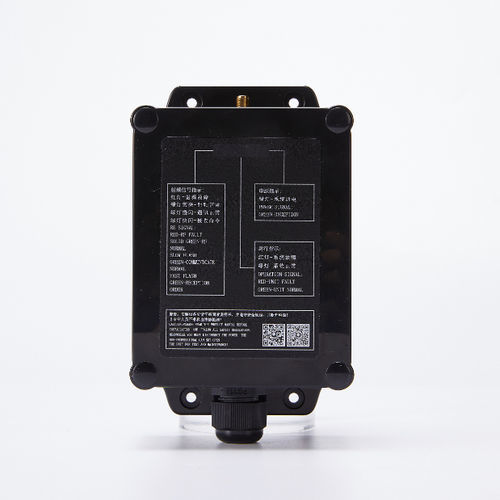

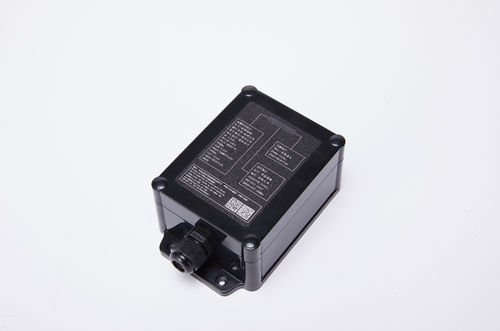

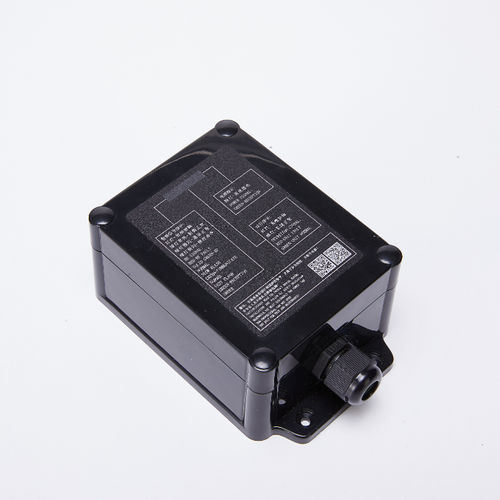

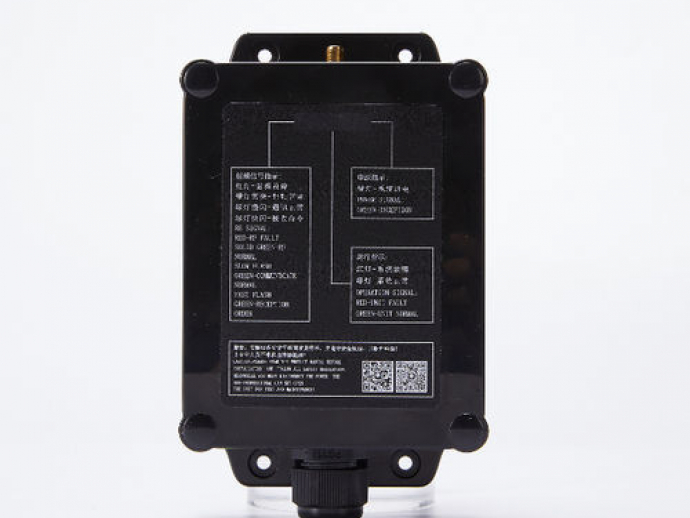

DCH-BM（Modbus RTU 485)
Size: 140 × 80 × 65mm
Weight: 200g (excluding antenna and cable)
Antenna: external (standard 3M TNC antenna)
Housing material / protection grade: PA6+30%GF / IP65
Temperature range： -25℃~+70℃ (-13F to +158F)
Humidity range: 0 - 97% maximum non-condensing
Center frequency range: 433-434mhz
Rubber vibration: 4 shock pads
Protocol output: Modbus RTU 485
Standard emergency stop : bus emergency stop signal output + physical emergency stop output
LED indicator: operation status indication / RF signal indication / power supply indication
Output options: connector, cable optional
Safety: Active and passive Stop function,Parity & Checksum
Response time:less than 100ms
Adaptable transmitter: all series shoulder belt transmitters
Power supply options: 9-36vdc or 30-420vac
Calble control optional

Parameter Name	Parameter Value
Applications	remote control
Interface type	RS-485, CAN Bus, fieldbus, Modbus
Other characteristics	IP65
