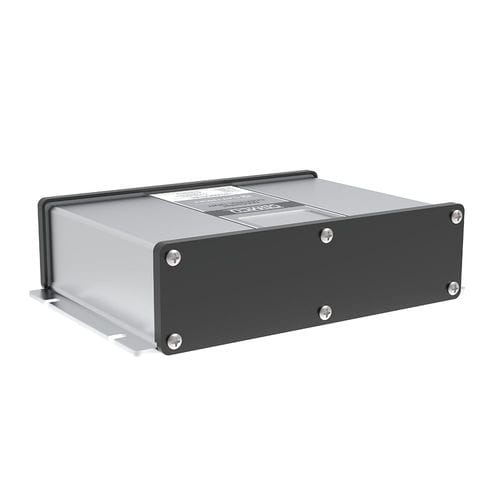

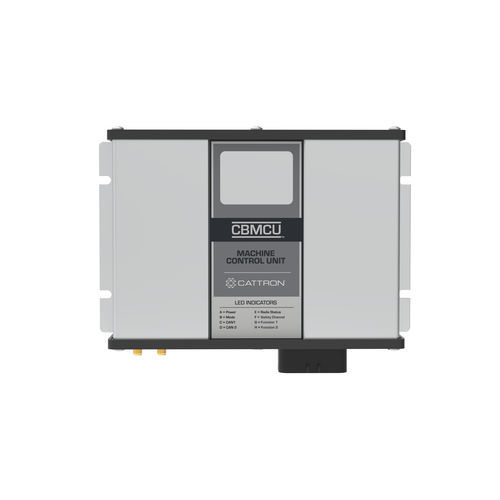

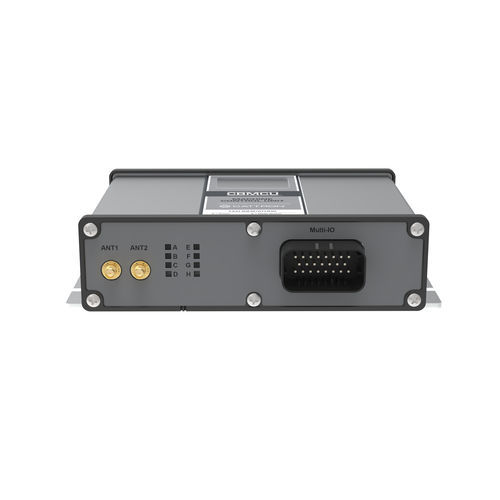

Remote control electronic control unit CBMCU

Remote control electronic control unit CBMCU

Remote control electronic control unit CBMCU

About


CBMCU is a machine control unit for radio remote control systems that enables operators to safely control complex and dangerous machinery with an ISO13849 PL-d safety rating on digital and CAN outputs. The system can work as an independent safety PLC for tough mobile applications.

-IP66 enclosure for high EMI performance
-Dual CANbus interface
-Eight PL-d outputs support CANopen and J1939 protocols
-Data logging
-Bluetooth® for closed-box configuration
-CAN configuration and programming with CattronLink™
-Works with Remtron™, S-Series, Safe-D-Stop™ and CattronControl™ OCUs

Features

Protection
IP66-rated

Housing
Robust aluminum fully shielded enclosure for high EMI environments

Frequency Range
License exempt: 915 MHz, 433 MHz, 868 MHz, 2.4 GHz, licensed 450-470 MHz

Interface
Dual CANbus interface that supports J1939 and CANopen

Closed Box Configuration
Configuration, programming and analytics with Bluetooth

Diagnostics Data Collection
Data logging and diagnostics memory are logged on the MCU and available directly over Bluetooth

Power Supply
9-36 VDC 20W

Digital Outputs
Eight PL-d outputs all support hit and hold functionality

PL-d Safety Level
PL-d safety level in compliance with ISO 13849

Warranty
Standard one-year product warranty

ISO Certification
Manufactured in an ISO 9001:2015 certified operation



PARAMETERS

Parameter Name Parameter Value
Options
  • CAN Bus
  • remote control
