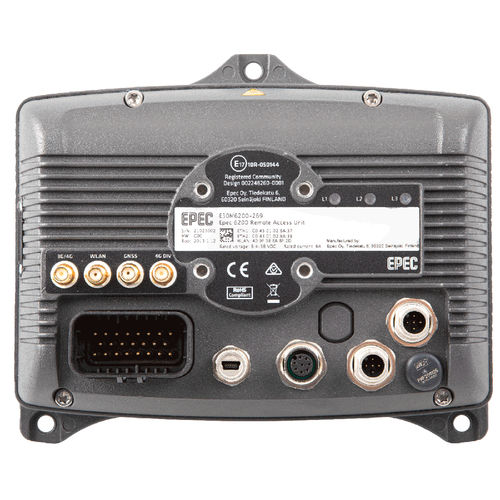

Epec 6200 Remote Access Unit offers versatile possibilities for remote access. Epec 6200 has a wide range of communication interfaces and it is wrapped in a slim and leak-proof rugged aluminum housing. Three diagnostic LEDs offer you quick status information.

Together with Epec’s IoT Services you’ll get the fastest to configure and most reliable IoT system/remote management solution in the market.

In case there is an occasional need for graphical interface in the machine, with Epec 6200 and WebVisu solution you can use for example a smart phone as temporary HMI when the machine is running.

Processor: 32 bit CPU
Flash memory: 4 or 32 GByte
RAM: 1024 MByte
CAN: 2-6
Ethernet: 2
USB: 1
RS-232: 1
GSM / UMTS / HSPA+/LTE
WLAN
GPS, GLONASS, BeiDou/Compass, Galileo, QZSS
I/O: 5 (3 inputs and 2 outputs or 5 inputs and 0 outputs)
IP class: IP67
Temperature range:
-30 … + 60 °C
-22 … +140 °F
Connectors: 1 x AMP23, 2 x M12, 3 x SMA
CODESYS version: 3.5
Supported communication protocols: CANopen, SAEJ1939, MODBUS, NMEA 2000
3 two-colored diagnostic LED for quick status check and fault detection

Keywords: remote management, fleet management

Parameter Name	Parameter Value
Type	IoT
Network	Ethernet GSM WLAN 4G UMTS RS-232 USB Modbus CAN CANopen
Other characteristics	for machine data management for remote access
