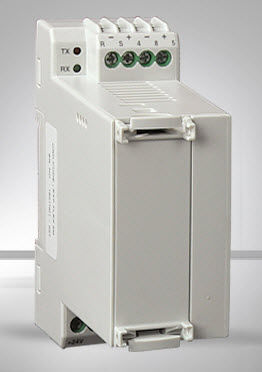

Relay expansion module EXP FLEX 2M

Relay expansion module EXP FLEX 2M

Relay expansion module EXP FLEX 2M

About


Used in conjunction with MODBUS RS485 Selec / Third Party Master communication device
Baudrate selections (19200, 115200 bps)
Seven Slave ID selection (1 to 7)
Supply Voltage: 18 to 30 VDC

Specifications
Display Type - LED Indication For Power ON & Communication Status
Digital Inputs - As Per Flexys Card Selected
Digital Outputs - As Per Flexys Card Selected
Output Ratings - 5A @230VAC / 24VDC (Relay) Source Type 100mA @24VDC (Transistor)
Analog Inputs - As Per Flexys Card Selected
Analog Outputs - As Per Flexys Card Selected
Communication Interface - RS485 Proprietary Protocol
Supply Voltage - 18 to 30 VDC
Size - 35 x 90mm



PARAMETERS

Parameter Name Parameter Value
Options
  • I/O
  • relay
Other characteristics
  • analog
  • DIN rail
