DISPLAY VISIONS provides the data logger EA SYLOG-USB-2 to monitor and record ambient temperature, relative humidity and dew point. It is ideal for applications in the pharmaceutical and food industry, transportation and logistics and general laboratory use. The device can simply be inserted into a PC USB port for fast, uncomplicated analysis of the data which has been logged. Drivers for current versions of Windows are provided.

The EA SYLOG-USB-2 captures temperature and relative humidity data simultaneously and can store up to 16,382 readings. It also calculates the dew point for each reading. The data logging intervals can be in the range between 10 seconds and 12 hours and are user selectable. The date and time when logging shall start can also be pre-programmed also.

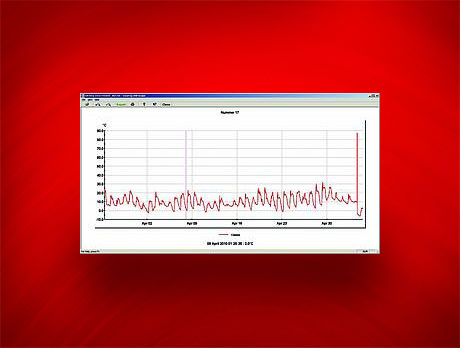

Software is supplied for displaying the results on the computer screen in graphics format. The graphs can also be formatted for printing. The data can be converted into a variety of standard formats and exported for further processing.

The data logger has a wide operating temperature range of -35°C to +80°C which is equivalent to -31°F - +176°F when the data logger is set to the Fahrenheit scale. The device also records the relative humidity between 0% and 100% and calculates the dew point. The data loggers come with a long-life, replaceable lithium battery which normally lasts more than 1 year before needing replacement. A plastic cap provides IP67 protection, keeping out water and dust even during operation.

Parameter Name	Parameter Value
Measured quantity	temperature, voltage, relative humidity, current
Connector type	USB
Other characteristics	IP67
