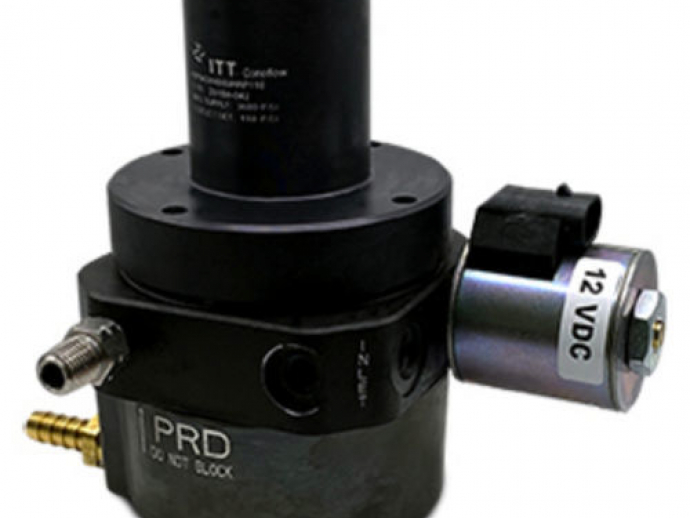

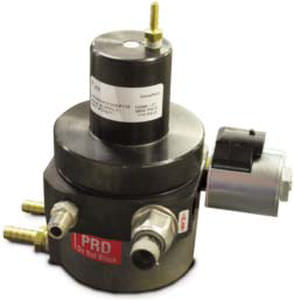

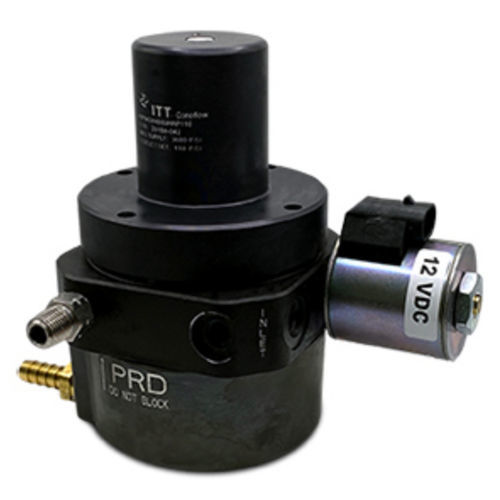

The New HPNGV4 Series CNG Regulator incorporates the same robust design and manufacturing characteristics as the HPNGV2 Series, and offers improvements in value by offering an optional inlet sensor and/or solenoid (high pressure shut-off) integrally mounted into the regulator. Over a decade of service in the most demanding applications has proven the HPNGV Series Regulator is the choice for OEM vehicle, engine and fuel systems.

The HPNGV Regulator is proven to be a safe and reliable pressure control element. Meets the requirements of ISO 15500 and NGV 3.1

Specifications
Regulated Media: Compressed natural gas
Inlet Pressure: 250 to 3600 psig (1.72 MPa to 24.84 MPa) to meet all performance specifications.
Nominal Output Pressure Range: Factory preset 45-150 PSIG (0.31-1.03 MPa) Set Point. The typical range of delivery pressure is +15 / -10 psi from specified setting throughout the range of inlet pressure, temperature and flow.

Gas Flow Rate: Up to 165 lbs/hr (0-82 kg/hr) (flow varies by application, consult the factory for data)
Internal Filtration: 40 Micron Corrosion Proof Sintered Element
Leakage (Ambient and Valve): Bubble Tight
Moisture Tolerance: To 7 lbs Water per Million Standard Cubic Ft.

Parameter Name	Parameter Value
