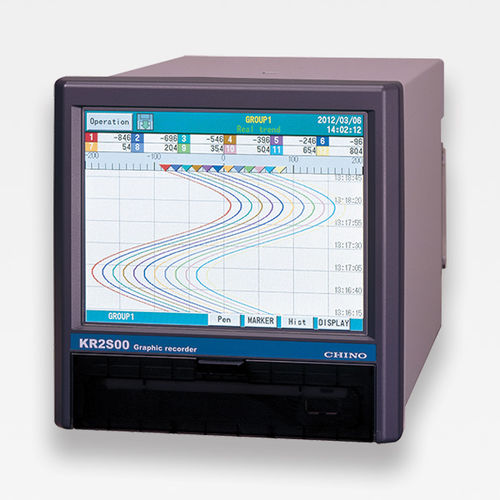

KR2S00 series are advance touch screen display (Keyless) paperless Graphic Recorder with high performance and high operating function along with high visibility 5.7″ VGA TFT color LCD display. Universal input with high speed of sampling rate 100msec and high accuracy rating of ±0.1% realized. Measured data is stored into memory and support up to 8GB through USB and CF card. As it can be monitored by a web browser display on several computers on intranet or internet, FTP transfer of data file and E-mail notification are also available.

- Employing clear 5.7″VGA TFT color LCD display
- Large capacity of data memory and various recording method
- Multi points recording with high speed/accuracy
- Direct writing on the screen
- Extend inputs with CHINO controllers
- Easy operating and programming without manual
- USB port provided in front
- LAN network capability (Option)
- Safety system and reliability
- Analyzing/data acquisition application software (Option)
- Custom graphic screen for per each applications (NEW)

Parameter Name	Parameter Value
Type	paperless digital event
Measured physical value	temperature, pressure, universal, current, flow, humidity, time, vibration, energy consumption, density
Applications	industrial data logger for acoustic testing for vehicles medical for gas for liquids laboratory water level for PC for automobiles for long-term measurements
Number of channels	6-channel 12-channel 24-channel 36-channel
Other characteristics	USB panel-mount with touchscreen with LCD graphic display with TFT-LCD screen
