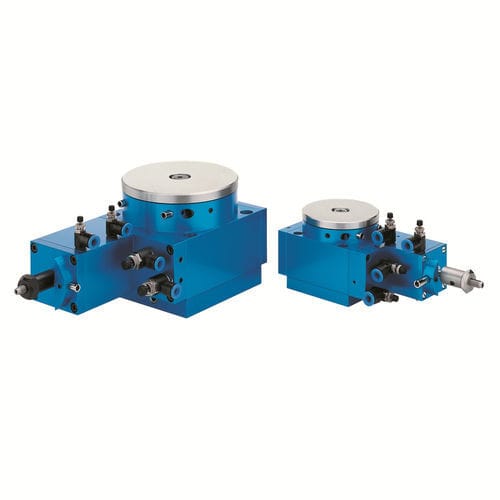

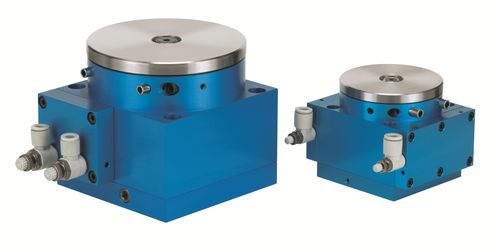

The assembly tables with reciprocating movement rotate on the horizontal plane. They are used to equip semi-automatic or automatic loading stations. Incorporated fine pitch stop screws made of hardened steel guarantee absolute precision.

The shaft is mounted on preloaded ball-bearings. Its reciprocating rotation is pneumatically controlled by a rack and pinion mechanism. A hydraulic shock absorber incorporated into the rack neutralises jarring at the end of the rotation. The rotation speeds are adjusted independently by flow regulators mounted directly on the unit.

Features
- Rotation on the horizontal plane
- 3 positions, with intermediate stop
- Pneumatically controlled by a rack and pinion mechanism
- Absolute precision
- Incorporated fine pitch stop screws made of hardened steel
- Hydraulic shock absorber at the end of the rotation
- Independently adjustable rotation speeds by flow regulators

Parameter Name	Parameter Value
Operation	pneumatic
Configuration	horizontal
Other characteristics	compact high-precision with ball bearing air reciprocating rack-and-pinion
Diameter (mm)	66 - 100
