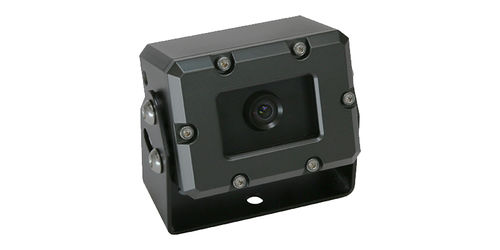

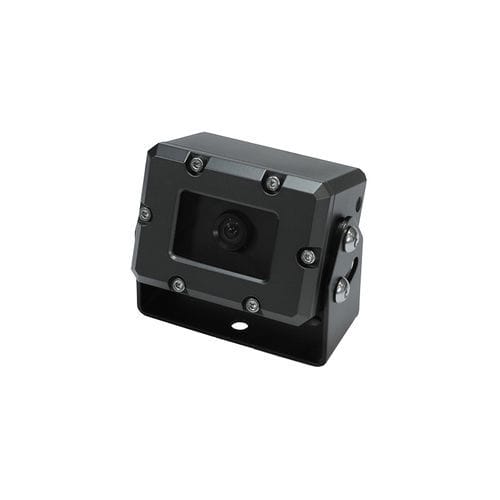

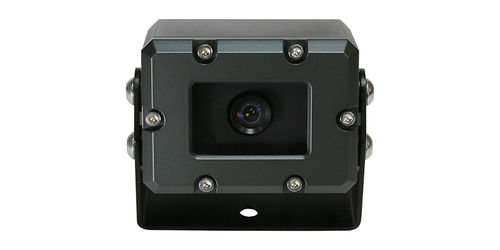

The MC3000B with its robust aluminium housing reliably solves visual problems in heavy-duty applications and under extreme weather and environmental conditions. Its numerous available view angles and plug connections make it the perfect choice for a wide range of applications in utility vehicles and mobile machinery.

The MC3000B‘s mechanical and electric layout is ideally suited for rough conditions in heavy-duty applications, and the device is pressure washer-proof in accordance with IP69K to guarantee a log service life and reliability. The energy-efficient automotive CMOS sensor delivers excellent image quality even in difficult lighting conditions. The automatically controlled screen heater ensures perfect visibility at low temperatures – quality “Made in Germany“.

• Suitable for heavy duty applications
• Immersion and jet cleaning-proof (IP68 and IP69K)
• Operating and storage temperature -60°C…+85°C
• 2.5 W screen heater
• Automotive CMOS sensor
• 20°, 40°, 70°, 90°, 100° and 115° horizontal view angle (other view angles on request)
• On-board network integration capability,
• 9 V…32 V DC
• Made in Germany

Parameter Name	Parameter Value
Applications	industrial machine vision for vehicles for the automotive industry
Technology	digital
Function	rear view
Spectrum	visible
Sensor	CMOS
Other characteristics	wide-viewing angle robust mobile
