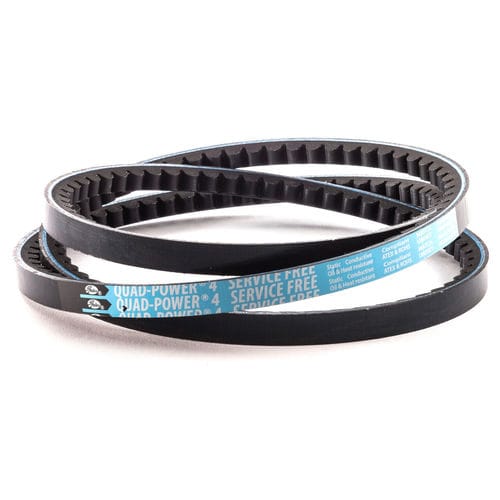

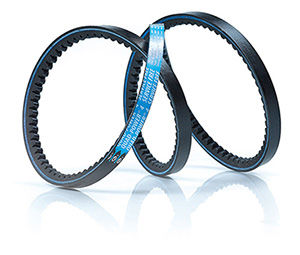

By using innovative minimal-stretch cord technology, Gates® Quad-Power® 4 bandless V-belts are free of maintenance. Unlike conventional belts, the Quad-Power® 4 V-belt does not suffer from severe tension decay in the first hours after installation. So no run-in period nor any re-tensioning are required. This new generation of SERVICE FREE EPDM belts are designed to extend product life time eliminating costly downtime for re-tensioning, repair and replacement.

EPDM rubber compound to ensure a long service life and a wear-resistant belt under extreme temperatures.
Minimal-elongation polyester tensile cords allow for stable tension over the entire lifetime.
Service-free V-belt with high stability on the toughest drives.

FEATURES AND BENEFITS
Static conductive (ISO 1813) and can as such be used in the conditions described in the Directive 2014/34/EU- ATEX.
Blue adhesion layer for an extra strong bonding of the tensile cords and the rubber compound.
Match system: all sizes meet Gates UNISET tolerances, they can be installed without matching.
Perfect fit on standard ISO/DIN V-pulleys and 3VX/5VX for RMA pulley grooves.
Optimised notch form for reduced bending stress and improved efficiency.
A clear branding for ease of identification.
Temperature Range: -50°C to +130°C.
REACH and RoHS 2 compliant.
Energy efficiencies up to 98%.
Fewer replacements.
Higher performance.
Halogen-free belt.
Less downtime.

Parameter Name	Parameter Value
Type	trapezoidal V
Material	rubber, EPDM
Sector	industrial
Other characteristics	high-performance maintenance-free raw edge abrasion-resistant high temperature-resistant low-temperature-resistant ATEX
Length (mm)	907 - 2682
Width (mm)	10 - 13
