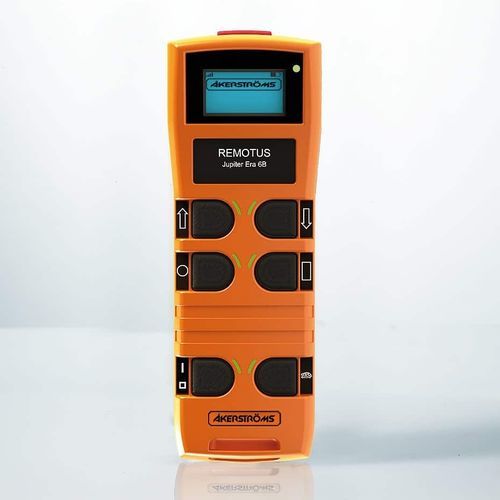

Robust transmitter made for hoists, pumps or other industrial and mobile applications.

The transmitter is well suited for light lifting with hoists, small cranes, various pumps, conveyor belts or other industrial/mobile use. The Era 6B has 6 two-stage pushbuttons that provide double functions on each pushbutton. The buttons are designed to be easy to use, even with gloves on. LEDs on each button indicate the selected function. Separate LEDs indicate battery and operational status. Operational status is shown on the display and with the LED. The handheld transmitter is very lightweight at 265g (incl. battery) and easy to carry around. The output of the transmitter is adaptive, i.e. if the signal is strong, then both transmitter and receiver “downshift” to a lower output to disturb others as little as possible. The Era 6B is classed at IP67, which means it is completely dust- and waterproof.

Technical data

Functions: Six two-stage buttons
Radio type: FM GMSK
Output power: 1-10 mW
Antenna: Internal
Battery: 3.7 V / 1.9 Ah
Protection class: IP67
Display: Graphic LCD, 128x64 pixels. Up to four numerical values with units can be displayed simultaneously. The values can be displayed numerically or as bars.

Parameter Name	Parameter Value
Network	radio
Specifications	hand-held
Other characteristics	LCD display robust IP67 indoor/outdoor for crane
