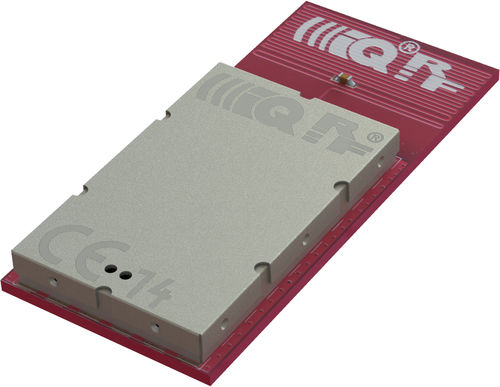

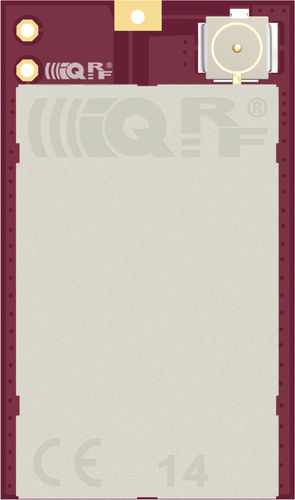

Radio transceiver TR-72D

Radio transceiver TR-72D

Radio transceiver TR-72D

About


TR-72D is a family of IQRF transceiver modules operating in the 868 MHz and 916 MHz license-free ISM (Industry, Scientific and Medical) frequency band. Its highly integrated ready-to-use design containing MCU, RF circuitry, integrated LDO regulator, serial EEPROM, optional temperature sensor and optional onboard antenna requires no external components. Extended RF power results in the higher RF range. Ultra-low power consumption fits for battery-powered applications. MCU with built-in operating system significantly reduces application development time. Optional DPA framework supports applications even without programming.

We offer also a 433 MHz version.
TR-72D-433 is a family of IQRF transceiver modules operating in the 433 MHz license-free ISM (Industry, Scientific and Medical) frequency band. Its highly integrated ready-to-use design containing MCU, RF circuitry, integrated LDO regulator, serial EEPROM and optional temperature sensor requires no external components. Extended RF power results in the higher RF range. Ultra-low power consumption fits for battery-powered applications. MCU with built-in operating system significantly reduces application development time. Optional DPA framework supports applications even without programming.

RF bands:
- 868 MHz and 916 MHz, SW configurable (TR-72Dx)
- 433 MHz implemented in special HW (TR-72Dx-433)
- 916 MHz for Israel, observing local RF band/channel restrictions (TR-72DA-IL)
- Mounting into SIM card connector KON-SIM-02



PARAMETERS

Parameter Name Parameter Value
Network
  • radio
  • ISM band
  • IQRF
  • LAN
Applications
  • for sensors
  • remote control
  • for wireless data transmitters
  • for actuators
  • for lighting
Other characteristics
  • IC
  • data
  • bidirectional
  • low-power
  • low-consumption
  • managed
  • ready-to-use
  • 869 MHz
  • 915 MHz
