Radio transmitter/receiver RTX500
Interface, send/receive module for MA503WL
Profile RTX500:
Works with radio-based magnetic display MA503WL
Mounting on top-hat rail or as an installation kit
Pluggable BNC antenna
24 V DC supply
RS232 or RS485 interface with ASCII-protocol

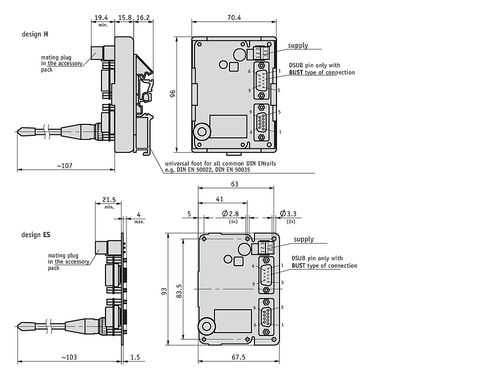

Mechanical data
Feature - Technical data - Additional information
Housing - plastic - snap modue for top hat rail mounting
Electrical data - -
Feature - Technical data - Additional information
Operating voltage - 24 V DC ±20 % -
Power input - <1 VA -
Receive sensitivity - -111 dBm -
Interface - RS232, RS485 -
Radio frequency - 868 ... 870 MHz -
- 902... 928 MHz - USA
Type of connection - screw terminal - 3-pole (supply)
- D-Sub - 9-pole (signal output)
Ambient conditions - -
Feature - Technical data - Additional information
Ambient température - 0 ... 60 5C -
Storage température - -20 ... 70 *C -
Relative humidity - <95% - condensation inadmissible
EMC - EN 61000-6-2 - interférence résistance / immission
- EN 61000-6-4 - emitted interférence / émission
Protection category - IP40
PARAMETERS
