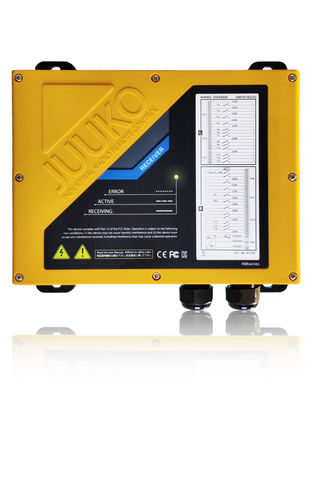

The receiver is equipped with pull-out terminals for an easy connection to any system. The installation can be done by 4 corner brackets. A green and red LED warns the state receiving transmission between transmitter and receiver unit by signaling via pulse code.

Dimensions

The C2 HM series receiver is the biggest size unit. After that it has been designed to minimize the aesthetic impact on the on-board system

Receiver Antenna

The receiving antenna can be easily screwed onto the SMA type connector. This particular makes it easier to move it to a different location. OPTIONAL It's possible to mount an external antenna with 2 or 5 meters cable, in this way you can install the antenna in a better reception place allowing the receiver positioning even inside an electrical panels or metal structures.

Parameter Name	Parameter Value
Type	wireless dual-frequency
Applications	industrial for construction site for radio remote control AC and DC applications
Interface type	USB
Other characteristics	compact rugged multi-channel with relay output IP65
