Receiver for hoists, cranes, pumps and other control

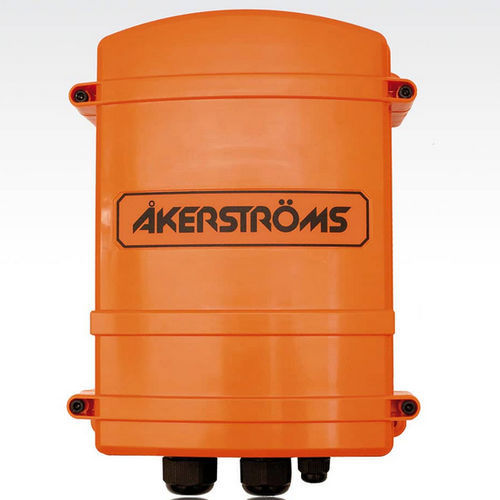

The Remotus RX161 receiver is pre-programmed with 16 different application programs. 16 outputs, 4 alternating relays and 12 open relays, of which 6 safety relays. Can be expanded with an additional 16 relays. The receiver has a multi-transformer for universal use. The receiver is rated to safety class IP67.
*Technical data
No. of outputs: 16 outputs; 4 alternating and 12 open contacts incl. 6 safety relays.
Stop outputs: 2 safety relays, safety parameters per EN ISO 13849-1: Cat 3, Pl d
Inputs: 1 analogue input 0(4)-20mA or 0(2)-10V. 1 serial input: RS422/RS485 2 opto isolated digital inputs for 24/48V AC/DC, 115V AC or 230V AC 50/60Hz
Radio frequency - 433-434 MHz;406-470 MHz
Power consumption: max 12 VA
Temperature range: -25 to +55°C
Enclosure: Fireproof plastic (UL 94 5VA)
Protection class: IP67
Dimensions: 277 x 217 x 115 mm
Weight: 1.5 Kg
Supply voltage: 24/48/115/230V AC or 24V DC
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
radio
|
| Applications |
for radio remote control
|
| Other characteristics |
|
