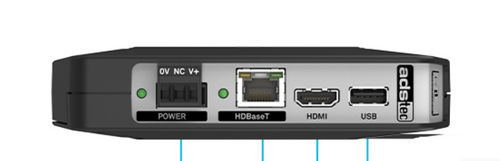

HDBaseT Box - Transmitter and receiver Robust solution for signal transmission
The proven transmission standard HDBaseT enables the wired signal transmission of image and USB signal over up to 100 m. This is especially important in the production environment since the susceptibility of radio connections to interference makes wired transmission mandatory and the image signal can be transmitted via DP and HDMI max.15 m.
One device three application areas Simple and effective transmission for versatile scenarios
The HDBaseT solution from ADS-TEC is the ideal solution for remote application environments in three different application areas:
Monitor without integrated HDBaseT receiver module and ADS-TEC IPC9000 with integrated HDBaseT transmitter module.
Compatible ADS-TEC monitor OPD9000 and MMD8000 with integrated HDBaseT receiver module and industrial PC without integrated HDBaseT transmitter module.
The HDBaseT Standalone Kit is used for data transmission by means of a transmitter (TX) and receiver (RX) between a computer and a monitor without integrated HDBaseT module. Any third-party product can be upgraded with the standalone kit. With ADS-TEC products, the transmitter and receiver can already be integrated directly into the product.

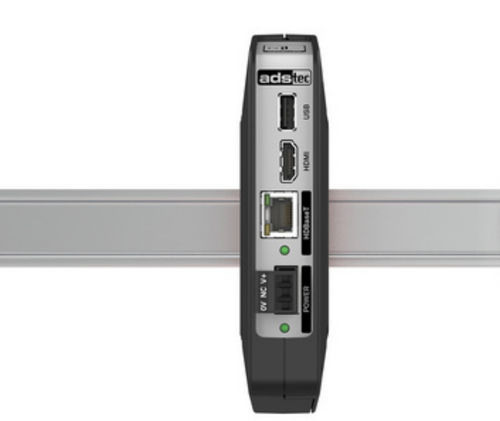

Top-hat rail mounting Easy installation
Simple mounting on a DIN rail makes it easy to install the device in control cabinets or on machines and systems.
Extended temperature range Reliable and robust technology
With an extended temperature range of -26 °C to +60 °C, the device is qualified for use in extreme heat or cold. This makes it ideal for use in the food, beverage, pharmaceutical and chemical industries.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
radio
|
| Applications |
|
| Interface type |
USB
|
| Other characteristics |
DIN rail
|
