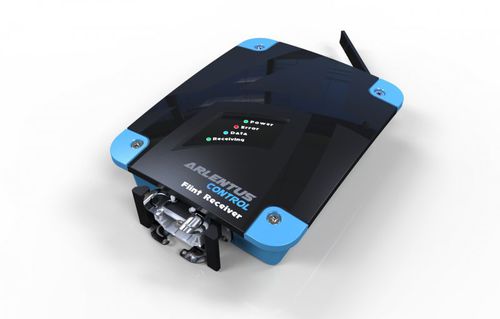

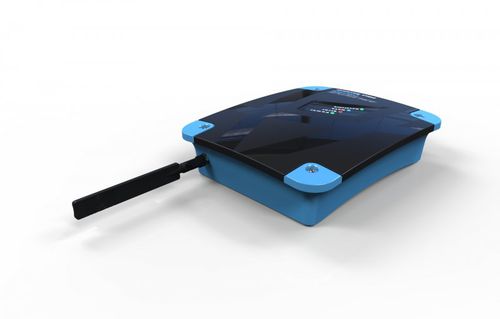

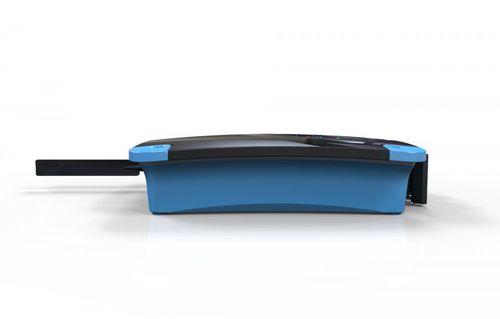

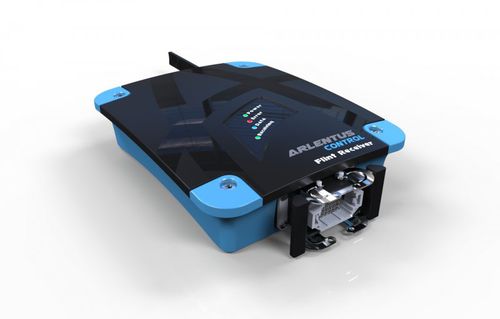

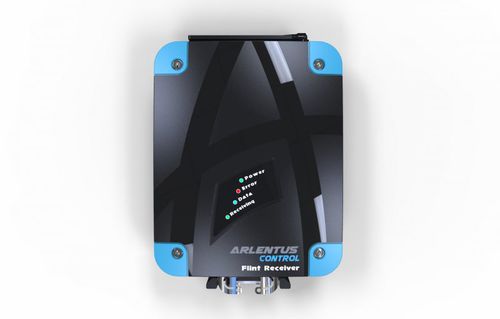

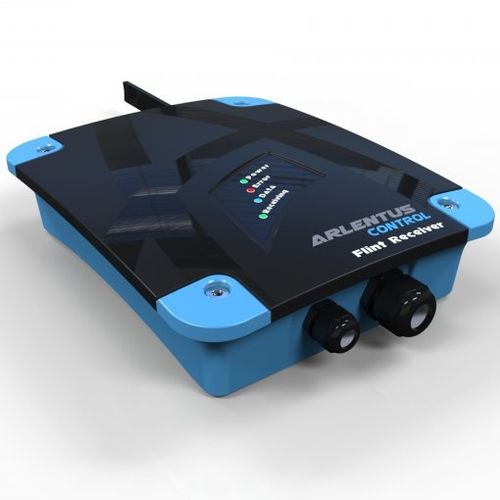

The most experienced member of the Receiver family, FLINT meets the needs of almost all sectors, thanks to its functionality. Appreciated for its design, Flint can offer economical and quick solutions owing to the slot card feature, in case of faults that may be experienced.

Operating Voltage: 10-30VDC

Current: 0.5 a

Dimension 240 x 300 x 84mm

Weight : 2,0kg

IP Protection Rating: IP65

Receiver Status Indicator: Yes

Recommended Receiver Units: Stone, Pebble, Rock

Connection: Connector, multi-contact industrial plug

Communication: CanBus, ModBus, Seriport

Antenna: Internal, External

It can be determined according to the conditions of use.

Material Type Used: Impact resistant polyamide

Operating Temperature: -25 ℃ +70 ℃

Analog / Digital Input and Output

Thanks to the next generation modular structured PCB design, the user can choose the combination that meets his/her requirements.

To the PCB board with 8 modular socket inputs;

PWM Output=8 PWM modules x max. 2 slots (16 ea)

Digital Output=8’ relay module x max. 3 slots (24 ea)

Digital Input=16’ Digital Input Module x max. 2 slots (32 ea) 4-20mA Output / Input=8 inputs + 8 outputs 4-20mA module x max. 1 slot (8+8)

Analog Output/Input=16 outputs + 8 inputs 0-10 V module x max. 1 slot (16+8)

Either of CANBUS, MODBUS or PROFIBUS can be used.

Parameter Name	Parameter Value
Type	radio digital analog
Applications	industrial
Interface type	Profibus
Other characteristics	modular
