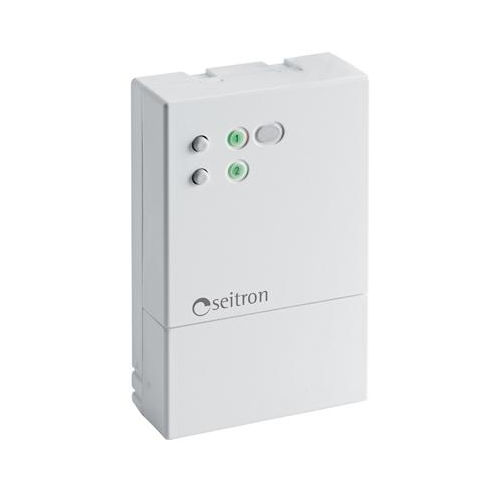

RECEIVER 2 OUTPUT

Two channels receiver featuring an integrated antenna with 1 or 2 relay output, which can drive an actuator, a pump or directly a burner. Bicolour LED for output relay status and quality of radio link with the relevant transmitter. Self-learning function of the thermostat code. Valid solution in all those buildings where it is not convenient to lay down wires from the thermostats to the heating-cooling room.

TECHNICAL FEATURES

Power supply 230V~ ±10% 50Hz
Power absorption 11VA
Output (relay) 6A @ 250V~
Transmission frequency 868,150 MHz
Antenna type Internal stylus
Bicolour LED indicator Active relay/ transmission quality
IP rating IP4X
Dimensions A125 L78 P30,5mm
Class Reg.2013/811/EC IV = 2,0%

Parameter Name	Parameter Value
Type	radio
Applications	for wireless data transmitters
Other characteristics	multi-channel with integrated antenna
