Our multifunctional waistband transmitter

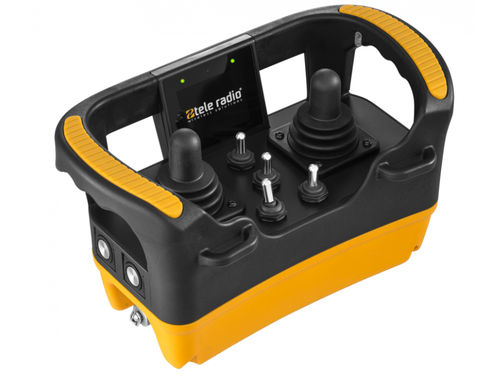

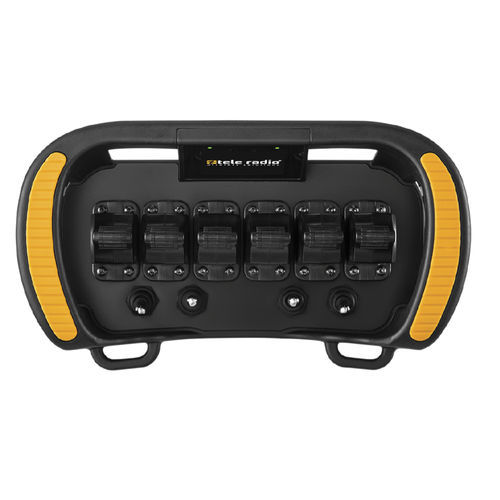

Our innovative midrange solution for waist band transmitters featuring a smooth and ergonomic design. Approximately 24 centimetres wide. Fitted with Handlebars that follow the natural curves of the hands. To guarantee your safety, each of the VersaTEQ transmitters is fitted with an independent certified PLe+Cat3 stop function. VersaTEQ is robust, versatile and flexible for many operations. Based upon 60 years of knowledge, Tele Radio developed this range of products for hydraulic, mobile and industrial applications.
UNIQUE TECHNOLOGY
We believe in innovation. Tele Radio has developed various applications that allow you to better operate and control your equipment using the latest technology. The Tele Radio VersaTEQ has, among other things, the following, special features and possibilities.
Active antenna
The active antenna can also serve as a stand-alone repeater. This increases the range between transmitter and receiver substantial. It makes it possible to use this system in very demanding circumstances, like mining, in mountainous areas, or in big buildings, without losing signal.
RFID control
The RFID is a wireless technique for recognition of a unique code of the system, product or user. The settings of a user can be saved on a smartcard with RFID which is recognized by the system during usage. Different user levels can be set up.
BUS systems
To meet the current industry standards, the Tele Radio VersaTEQ remote controls are compatible with a wide range of BUS systems. A smooth cooperation with the software of your machine can be assured. The Tele Radio VersaTEQ remote controls can handle CANOPEN, MODBUS and SAE J1939.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
radio
|
| Control interface |
with buttons, with toggle switch
|
| Number of buttons |
4-button
|
| Features |
on/off
|
| Protection level |
IP65
|
| Product applications |
|
| Battery type |
rechargeable, Li-ion
|
| Other characteristics |
belt
|
| Length (mm) |
241.5 - 241.5
|
| Width (mm) |
136.3 - 136.3
|
| Temperature |
Max.: 55 °C (131 °F)Min.: -20 °C (-4 °F)
|
| Frequency (Hz) |
2400000000 - 2400000000
|
| Continuous working time |
10 h
|
