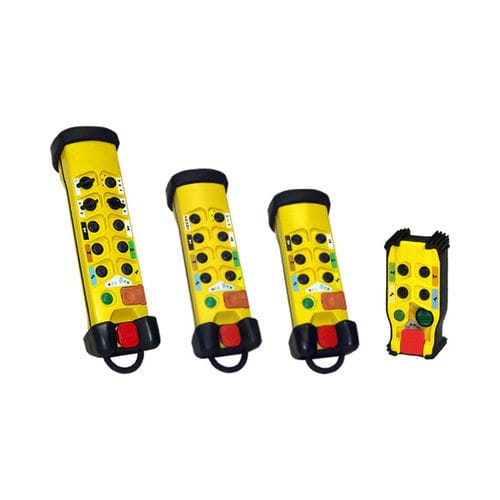

UD radio remote controls provide a safe and ergonomic distant control for cranes, machines or vehicles. A SIL 2 - PLd certified emergency stop makes it particularly suitable for material handling.

The modular design of the remote controls allows personalization by choosing the type of pushbutton / switch and label for each location, the number of relay outputs, the programming of relay / buttons assignments, interlocking between buttons, secure start-up options.

Protection degree:
IP65

Operating temperature:
- 20° C / + 50° C

Frequencies:

433 MHz​
869 MHz (UD only)
915 MHz (UD only)​
Safety performance level:
PLd​

Transmitter autonomy:

URE transmitter: internal lithium battery​
50-hour autonomy with 50% operating time
Wall-mounted charger required​
UDE transmitters: removable NiMh batteries​
Up to 12-hour autonomy with full operation time
Separate removable battery charger

Parameter Name	Parameter Value
Type	radio
Control interface	with buttons, rotary switch
Number of buttons	6-button, 8-button, 10-button, 12-button
Features	with emergency stop
Protection level	IP65
Product applications	industrial for crane for lifting equipment for overhead cranes for hoists for machines transmitter for vehicles
Other characteristics	safety
Temperature	Max.: 50 °C (122 °F)Min.: -20 °C (-4 °F)
Frequency (Hz)	433000000 - 433000000
