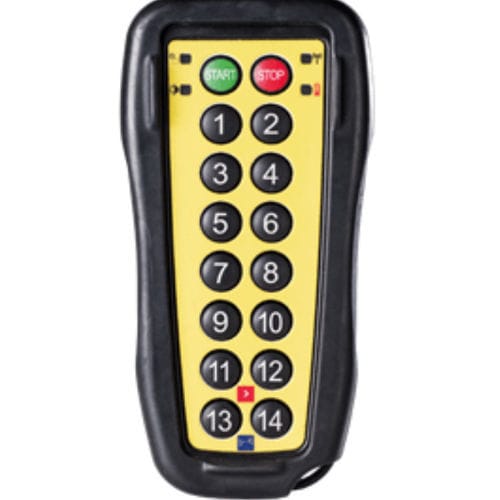

Radio remote with a maximum of 14 keys on its panel, yet it manages up to 56 commands via the PAGE CHANGE function.

DESIGN

The high-strength plastic material is co-molded with a rubber shell to make the grip more solid and protect against accidental falls, even from a height of 4 meters. Operation is guaranteed from -20°C to +55°C.

KEYS

The 10mm diameter buttons, with a well-defined contact, are suitable for all users. Silicone rubber keyboard from 8 to 14 keys in addition to the START & STOP functions.

LED

The red LED indicates that the battery is almost empty while the green one indicates it is powered correctly, in addition to the presence of radio transmission. Among the options, the Backlit Keyboard.

CONTROLLER

It combines well with the CNTR8, CNTR20, CNTR32 or RADIOCAN controllers

SAFETY AND PROTECTION

The Emergency MUSHROOM button is an option that helps ensure complete control of operations any time an emergency stop of the application is required. To reactivate the system it is therefore necessary to release the button and then press START.

Parameter Name	Parameter Value
Type	radio
Control interface	with buttons
Number of buttons	14-button, 24-button
Features	with emergency stop, on/off
Protection level	rugged
Product applications	winch industrial for trucks for machines for forest harvesters for agricultural applications handling for marine applications for sweepers for vehicles for hydraulic applications for concrete mixers for wheelchairs for agricultural machinery for concrete pumps for hooks
Battery type	Li-MnO2
Other characteristics	safety
Length (mm)	165 - 165
Width (mm)	80 - 80
Temperature	Min.: -20 °C (-4 °F)Max.: 55 °C (131 °F)
Frequency (Hz)	433000000 - 433000000
Power source	30 mA
