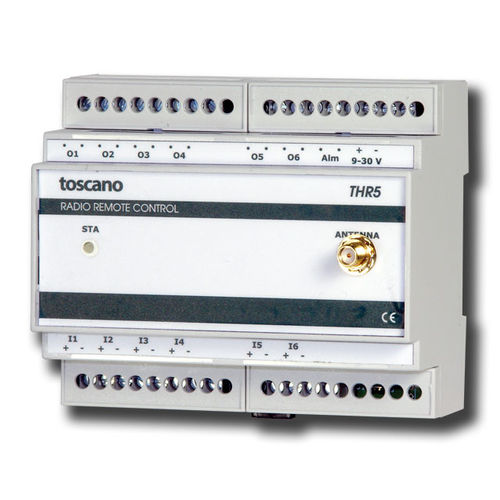

Radio remote control, 2 digital I/O

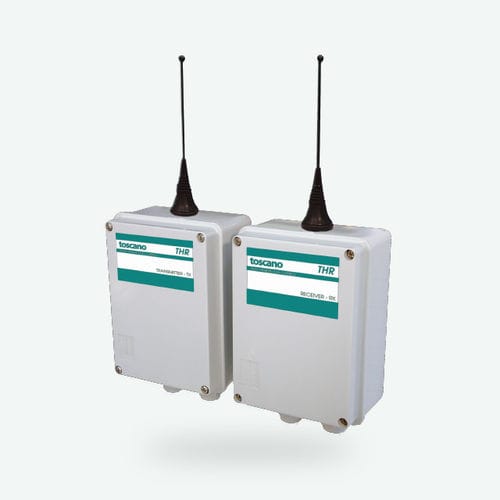

Transmitter + receiver, UHF band 433MHz, 2 digital I/O, 230Vac / 9-30Vdc power supply + basic aerial.
Power supply: 230Vca, 9…40Vdc (7…40Vdc in LOW POWER mode)
Operating frequency: 433.92MHz
Transmission power: 10mW
Aerial: 50Ω with BNC-type connector
Inputs / outputs:
2 voltage-free digital inputs
1 level control input with 2 probes
2 relay outputs (250V / 5A max.)
1 error output (250V / 5A max.)
Battery charge voltage:
Selector switch in 12V: 14.1V
Selector switch in 24V : 27.4V
Battery charge current: 62mA max.
Low battery warning voltage:
11.85V with battery connected at input +BAT
12.6V cwith battery connected at input +PANEL

Parameter Name	Parameter Value
Type	radio
Product applications	industrial
