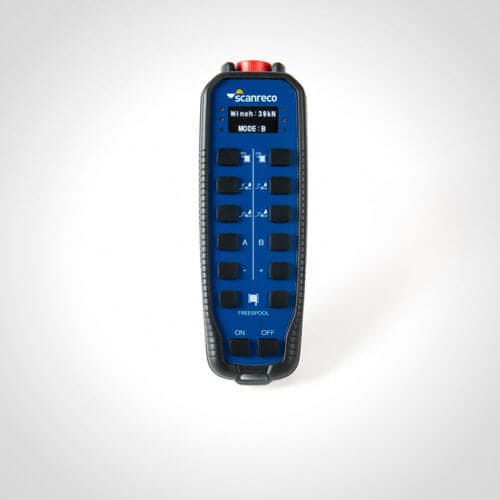

The Scanreco Rocket Flex offers a multitude of digital control functions as well as operator feedback. The transmitter has 14 pushbuttons in either one or two-steps. Customization of the transmitter front label is possible by combining symbols and text.

The Rocket Flex offers a wide array of features and a high degree of adaptability. The buttons can be configured to be momentary, latching or interlocking. Each button can be assigned to any receiver output and to several outputs at once. A shift feature duplicates the functionality of each button. The optional graphic display and five standard LEDs, which are used for feedback from the receiver, are programmable.

Automatic frequency management allows for continuous work without any interruptions caused by radio interference from other wireless equipment. In cases where an extended operating range is required, an extra Rocket Flex or Pocket transmitter can act as a repeater for the radio link.

The transmitter communicates with the corresponding receiver using a Scanreco protocol and a unique identity code. This guarantees that no other Scanreco transmitter or other products ever can activate the machine unintentionally. The stop function conforms to performance level “d” (PL d) as specified in EN ISO 13849-1, a legally binding standard for safety-critical components of control systems.

The Rocket Flex transmitter is made for heavy usage and offers 120 h of nonstop use before charging – as usual, our customers can rely on our ability to deliver functionality they can trust – what we call Never-Stop Technology™ from Scanreco.

Parameter Name	Parameter Value
Type	radio
Control interface	with buttons
Number of buttons	14-button
Features	with emergency stop, on/off
Protection level	IP65 rugged
Product applications	for concrete mixers industrial for spraying machines for lifting equipment for machines for trucks for agricultural applications for marine applications flexible winch for concrete pumps for hooks for grinding machines
Battery type	rechargeable
Other characteristics	safety with integrated display with feedback for harsh environments
Reach (mm)	100000 - 100000
Width (mm)	69 - 69
Temperature	Max.: 55 °C (131 °F)Min.: -25 °C (-13 °F)
Frequency (Hz)	2400000000 - 2400000000
Continuous working time	Max.: 120 hMin.: 40 h
