About
It is intended for radio remote control of an electromagnetic or electromechanical lock (latch) or other actuating devices.
Built-in power supply 12V, 1.5 A. Easy connection: plug the controller into a 220V outlet, connect the lock to the terminal contacts of the controller.
Description

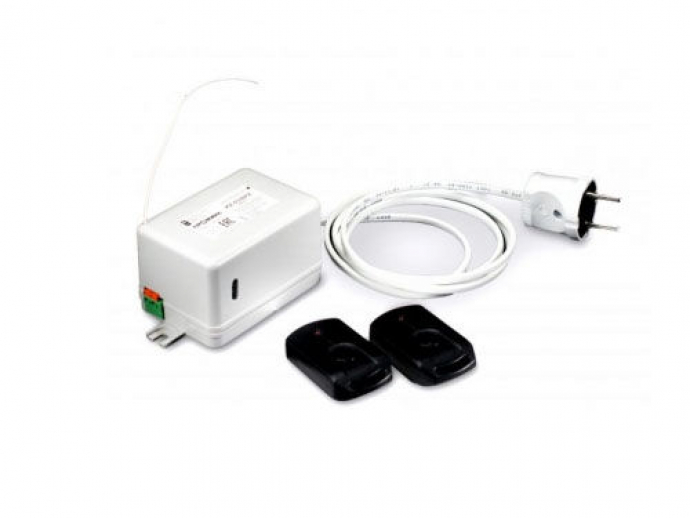

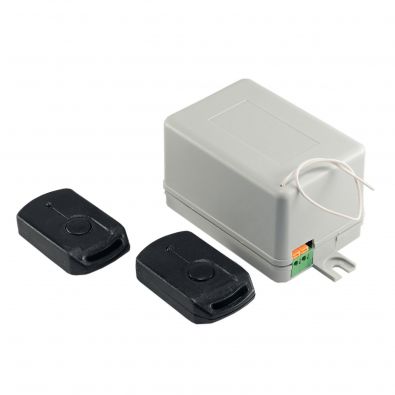

The remote control system "Promix-RDS.01" is designed for radio control of various actuators (maglocks, electric locks, electromechanical locks, latches, turnstiles, etc.).
The system includes: an executive device, a power source, a radio receiver, a controller, key fobs. The power supply, radio receiver, controller are made in a single structural unit (Promix controller-CR.RX.03, hereinafter referred to as the controller). The radio receiver of the controller provides reception of control signals of the Promix-CR.TX.01 key fobs. The power supply of the controller is used to control the connected devices.
Technical characteristics of the power supply unit.
The controller's power supply supplies the radio receiver, th controller and the actuator. The design of the power supply is pulsed, with galvanic separation of the primary and secondary circuits. The power supply has built-in protection against overcurrent and short circuit.
Technical characteristics of the controller.
Structurally the controller is made on the same board with a radio receiver. The controller performs the following functions:
*programming of radio remote controls and the control time of the actuator,
*setting the type of connected actuator (actuation when the control voltage is applied, actuation when the control voltage is removed),
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
radio
|
| Control interface |
with buttons
|
| Product applications |
for locks
|
| Frequency (Hz) |
433920000 - 433920000
|
| Power source |
1 A
|
