About

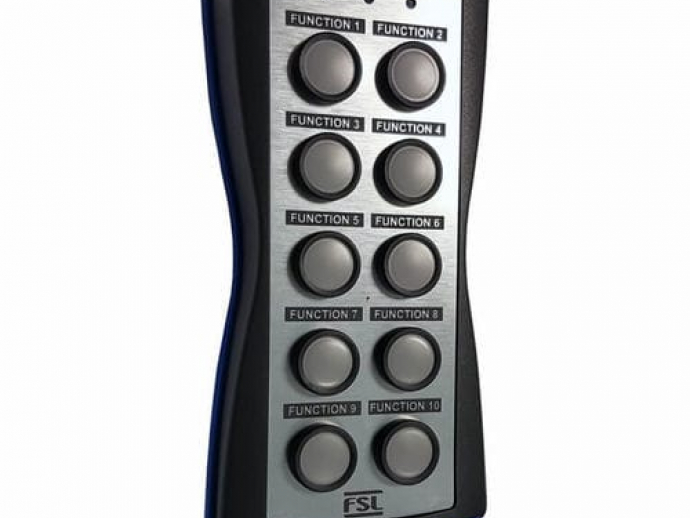

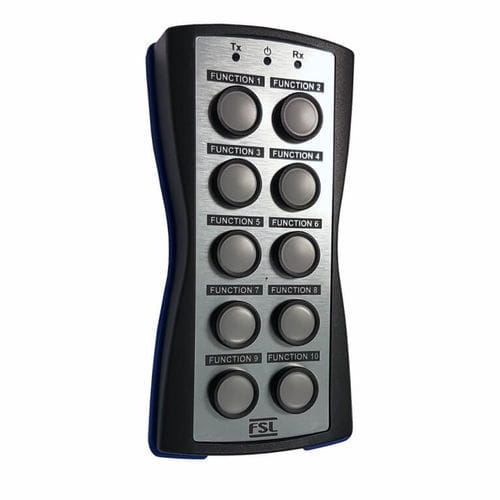

ProGrip is the next generation of FSL Ultrabeam® wireless remote control systems.
Designed to provide an operator complete control over their industrial machinery and to improve efficiency, reliability productivity in a wide range of industrial applications.
The robust housing of the ProGrip remote control is ergonomically designed and has a protection rating of IP 65, making the transmitter optimally protected against moisture, dust and dirt in harsh environments.
Ultrabeam® industrial remote control systems have become the industry standard, proven to be among the most durable remote controls produced, with many units operating in the harshest environments for over 15 years without fail.
Technical Specifications
4 models – ProGrip 8/ ProGrip 10 / ProGrip 18 / Progrip 21
Push button control
Ergonomically designed with high impact ABS plastic
Equipped with LED indicators
36kHz infrared (IR) frequency (others available on request)
Protection rating: IP65
Standard or rechargeable battery
Operating & Storage temperature: -10oC to +50oC
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
radio
|
| Control interface |
with buttons
|
| Number of buttons |
10-button
|
| Protection level |
IP65
|
| Product applications |
|
| Battery type |
rechargeable, lithium-polymer
|
| Other characteristics |
for harsh environments
|
| Reach (mm) |
150000 - 150000
|
| Length (mm) |
115 - 115
|
| Width (mm) |
65 - 65
|
| Temperature |
Max.: 55 °C (131 °F)Min.: -20 °C (-4 °F)
|
| Frequency (Hz) |
433075000 - 434775000
|
