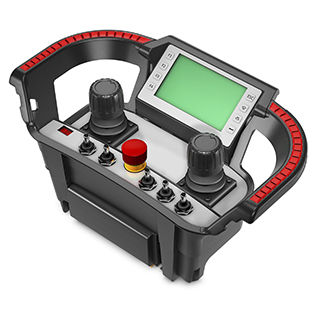

Nano-media is NBB’s latest product development. It combines the compact design of the Nano-minot with the technical variance of the Nano-magna – for the greatest variety of operating and feedback options in the smallest space.

• Compact, ergonomic design
• also suitable for complex applications
• optional: 3-axis joysticks in NBB design
• optional: 4.3” LCD display with customer-specific design
• SMJ technology

Technical information
• Frequency band (F2-Band): 434,050 – 434,750 Mhz
• Frequency band EU (G-Band): 866 – 870 MHz
• Frequency band USA: 915 MHz
• RF output: < or = 10 mW
• Operating range: ≤ 300 m
• Antenna: integrated
• Response time of control command: 15 ms
• SMJ-Technology: easy change of the joystick
• Advance alert “battery empty”: 15 minutes
• Datafeedback: Range, transmission signal strength, status of the machine function and customer-specific feedback information and logos on request
Display on 4.3 LCD color display
Number of pixels: 480 x 272
Operating temperature: -20 to +70 °C
(status display separate in 2 x 7 segment display)

Machine data:
• Operating temperature range: -20 °C to +65 °C
• Weight: 3500 g
• Status indication: 2 x 7-segment functional display (LED) or 4,3” LCD-Display

Equipment safety:
• CE label: yes
• IP-Protection Class: IP65

Power supply:
• Quick-change battery system: Ni-MH / 1 500 mAh
• Voltage: 7,2 V
• Operating time: 35 hours/battery charge
• Charging time approx. 1 hour
• Charging technology: external via charger
• Measurements: 126 x 47 x 18 mm
• Weight: 195 g

BATTERY CHARGER
• Suitable for 230 V/AC, 110 V/AC, 12/24 V/DC
• Optional plug form EU, USA, JP, GB, AU
• Temperature measurement for an improved recharging

Parameter Name	Parameter Value
Type	radio
Control interface	joystick
Features	with emergency stop
Protection level	IP65
Product applications	for crane for hoists for drilling rigs for excavators for concrete pumps for construction vehicles
Other characteristics	compact with integrated display safety
