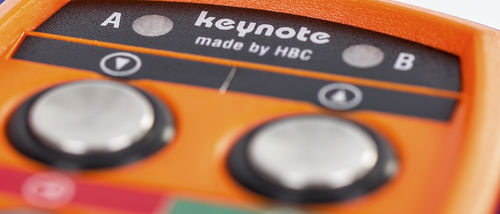

The convenient control for one-step drives. High-quality one-step HBC push buttons. Second operating level for double function range.

Operating elements & control functions

Up to 12 one-step push buttons
STOP impact switch
Up to 21 control functions (on / off)

Battery technology

Rechargeable NiMH exchange battery
Continuous operating time: up to 30 hours

Indication

LED for the indication of operating / battery status
LEDs for the indication of selection buttons

Adaptive Frequency Hopping

HBC's advanced fully automatic frequency management comes standard with all our 2.4 GHz radio systems.

Your advantages:

A manual frequency coordination with other radio users is not necessary.
The operator can work without interruption, even in areas with many radio users. This saves valuable time.
This technology is approved almost worldwide, which makes warehousing much easier: instead of different country-specific high frequency modules, in most cases, just a single 2.4 GHz module can be used.
In countries where HBC radio systems are approved, the 2.4 GHz technology is available without registration or license fees. This saves costs and effort.

How it works:

Frequency management is already included in the radio system and works automatically.

Parameter Name	Parameter Value
Type	radio
Control interface	with buttons
Number of buttons	12-button
Features	on/off
Protection level	IP65
Product applications	industrial for crane for lifting equipment for construction vehicles for logistics
Battery type	rechargeable, Ni-MH
Length (mm)	210 - 210
Width (mm)	64 - 64
Temperature	Max.: 70 °C (158 °F)Min.: -25 °C (-13 °F)
Frequency (Hz)	405000000 - 928000000
Continuous working time	30 h
