Radio control E1 PIC

Radio control E1 PIC

Radio control E1 PIC

About

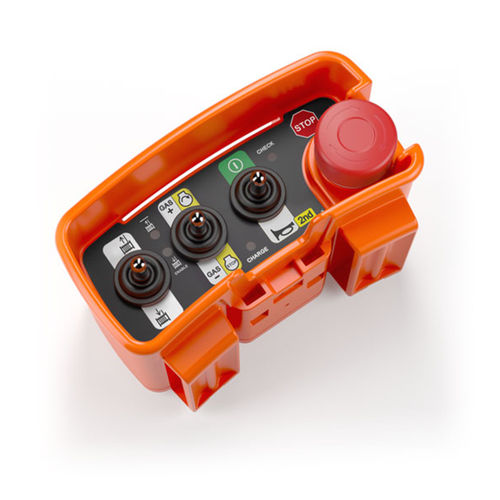

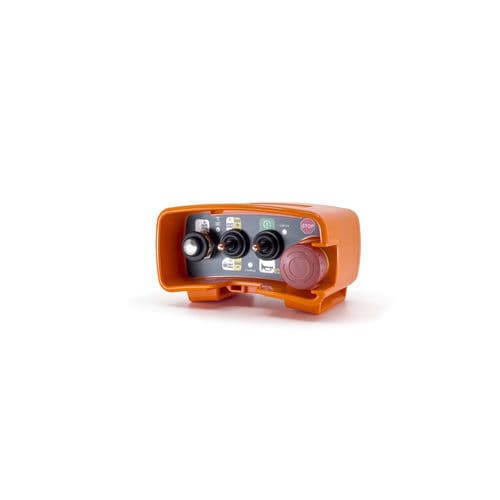

Compact waist portable industrial safety radiocontrol (cableless control), small and lightweight, robust and reliable. Designed to satisfy a vast range of applications (MITO and E1 electronics). As standard configuration: 3 selectors and emergency mushroom-shaped stop button, allowing for 5 commands and up to 8 with the 2.nd function toggle switch. Interchangeable Lithium battery.
The blinking of the “CHECK” Led indicates to the operator that the base station is connected and ready to receive commands.

It is used in the remote control of forestry machines, agriculture machines, septic pumps, dust suppressors, compact presses, PLC, relay control, contactors, quarry machines, sawing machines, mills, screeners, conveyors and demolishers, container trucks, hooklift, industrial processes, handlers, processing machines, hydraulic cranes for trucks, mobile cranes, aerial platforms.

Highlights
COMPACT
PIC is a compact waist portable transmitter, PICCOLO (small) and light, robust and reliable. Born to satisfy different application needs.

CUSTOMIZABLE
Spacious control panel, customizable (icons, actuators).

PL d category 3 e-Stop
Waist portable transmitter with mushroom Stop up to PL d category 3 EN ISO 13849-1

CHARGING WITH ELCA-CLIP USB
Integrated lithium battery charging system with ELCA-CLIP USB; even with Power Bank during use.
ELCA Radiocontrols Industrial Safety Commands and Remote Controls



PARAMETERS

Parameter Name Parameter Value
Type
radio
Control interface
with toggle switch, rotary switch
Features
with emergency stop
Protection level
IP65
Product applications
  • for hoists
  • industrial
  • dust
  • for trucks
  • for hydraulic cranes
  • for contactors
  • for agricultural machinery
  • for conveyors
  • for automation
  • for septic pumps
  • for drilling
  • forestry
  • for mills
  • PLC
  • for logistics
  • for punch presses
  • for safety relay
  • handle
  • for hooks
  • for containers
Battery type
lithium
Other characteristics
compact
Reach (mm)
150000 - 150000
Length (mm)
87 - 87
Width (mm)
70 - 70
Temperature
Max.: 70 °C (158 °F)Min.: -40 °C (-40 °F)
Frequency (Hz)
434000000 - 434000000
Power source
45 mA
Charging time
1 h
Continuous working time
20 h
