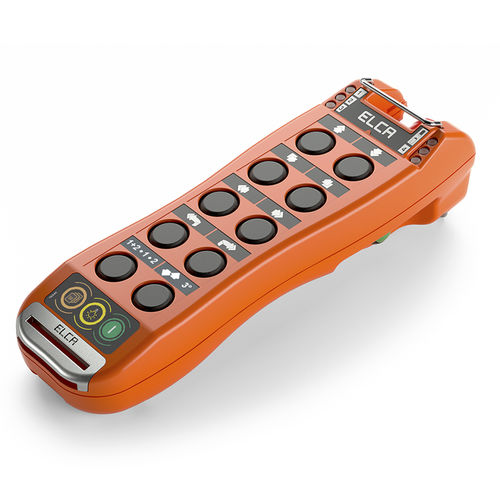

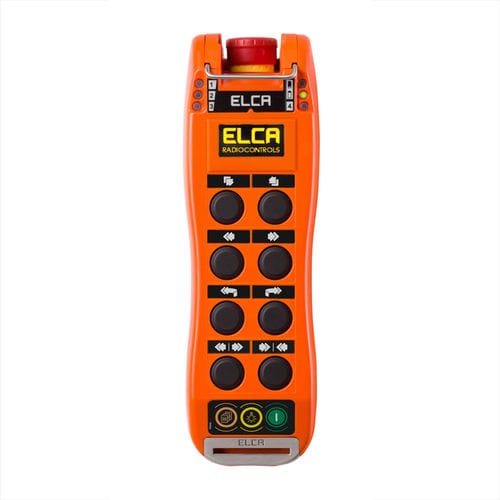

Handheld industrial safety radiocontrol (cableless control) MIA with 10 double-speed push-buttons and 2 programmable single-speed, Start and Stop.
Options: 1-0-1 toggle switch; side push-buttons, potentiometer, 4 LED feedback or active selection, data feedback graphical display; dead-man, off-on-off, function.
Pairing key easily accessible externally. Interchangeable Lithium battery with power supply ELCA-CLIP.

It is used in the remote control of tower cranes, self-erecting cranes, overhead cranes, beam crane, tripod crane, flag crane, quarry machines, sawing machines, mills, screeners, conveyors, demolishers, PLC, relay control, contactors.

Highlights
PL d CATEGORY 3 e-Stop

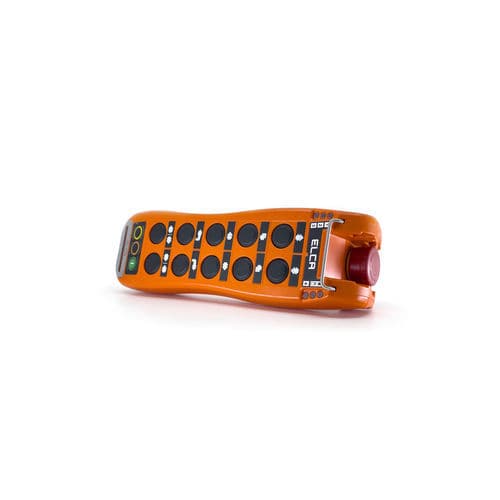

Handheld transmitter with mushroom e-Stop up to PL d category 3 EN ISO 13849-1

CUSTOMIZABLE
Up to 23 on/off commands (2 single, 10 double step buttons, selector 1-0-1, Start and E-Stop (Pld) buttons, proportional potentiometer.

INTEGRATED CHARGING BATTERY

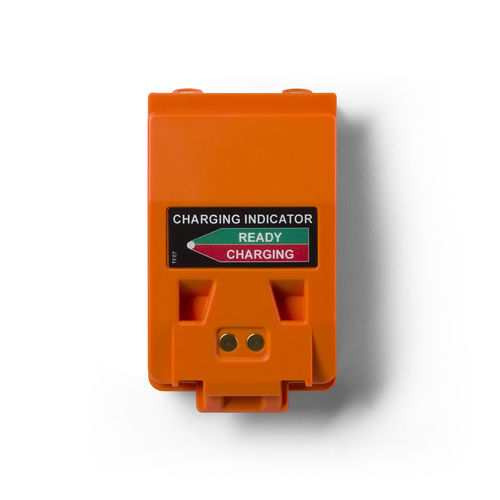

Interchangeable lithium battery, with an original integrated charging electronics and ELCA — CLIP USB cable. Compatible with use of Power Bank.

ROBUST ERGONOMIC
MIA handset is robust and resistant to harsh operating conditions (ABS casing, release valve, IP65 rating). Protective cover available for extra protection (optional).

IF DESIGN AWARD
In 2017, MIA design excellence was awarded the prestigious IF Design Award.

Parameter Name	Parameter Value
Type	radio
Control interface	with buttons
Number of buttons	10-button
Features	with emergency stop, on/off
Protection level	IP65
Product applications	for hoists industrial for tower cranes for mills for overhead cranes construction for beams for mining equipment for automation PLC for safety relay for contactors for conveyors
Battery type	lithium
Reach (mm)	150000 - 150000
Length (mm)	235 - 235
Width (mm)	60 - 60
Temperature	Max.: 55 °C (131 °F)Min.: -25 °C (-13 °F)
Frequency (Hz)	434000000 - 434000000
Power source	45 mA
Charging time	1 h
Continuous working time	20 h
