About

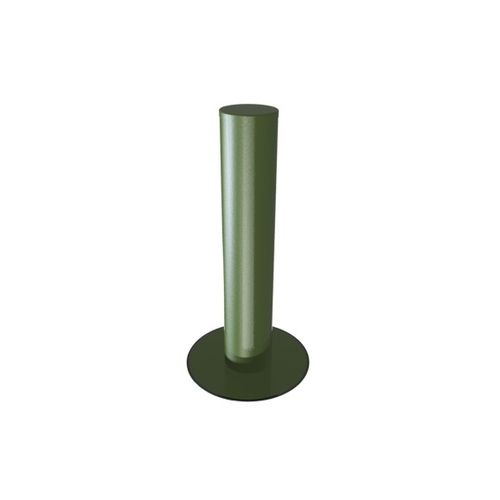

The HELI-A0105 is a dual port helical spiral, right-hand circularly polarised antenna designed for operating in the 2400 – 2500 MHz and 5725 – 5875 MHz bands. The antenna provides broad beam coverage without nulls or reduction in performance.
The antenna is suitable for use in both high power transmit and communications applications.
The antenna features a low VSWR and high gain over both operating bands with a light weight, yet robust radome to protect the radiator.
PRODUCT FEATURES:
• High gain
• High power
• Low VSWR
Dimensions (m) - - 0.362 -
Mass (kg) - - < 1 -
Maximum VSWR - - < 2.0:1 -
Polarisation - - RHCP -
Size (m) - - 0.362 -
Power Handling (Text)(This field will be display if “Power Handling” is blank) - - 125 W CW
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Network |
|
| Type |
transmitter
|
| Other characteristics |
passive
|
| Frequency (Hz) |
2400000000 - 2400000000
|
| Gain (dB) |
12 - 12
|
