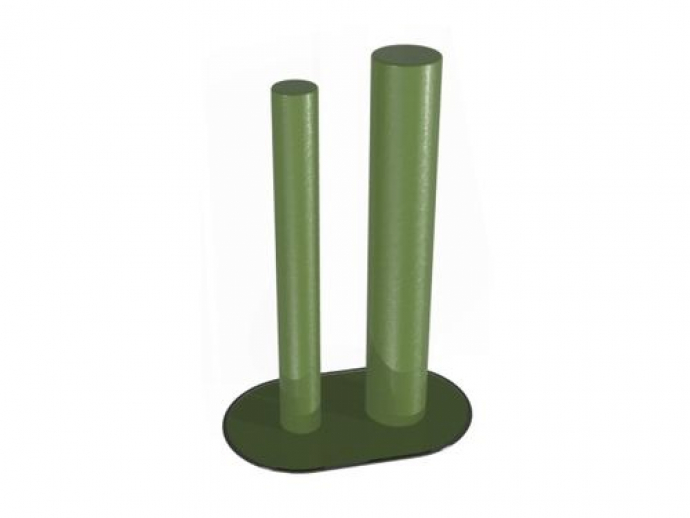

The HELI-A0104 is a dual port helical spiral, right-hand circularly polarised antenna designed for operating in the 1160 – 1260 MHz and 1559 – 1610 MHz bands. The antenna provides broad beam coverage without nulls or reduction in performance.

The antenna is suitable for use in both high power transmit and communications applications.

The antenna features a low VSWR and high gain over both operating bands with a light weight, yet robust radome to protect the radiator.

Active / Passive - - Passive -
Dimensions (m) - - 0.6 -
Mass (kg) - - < 3 -
Maximum VSWR - - < 2.0:1 -
Polarisation - - RHCP -
Size (m) - - 0.6 -
Power Handling (Text)(This field will be display if “Power Handling” is blank) - - 100 W CW

Parameter Name	Parameter Value
Network	radio dual-band
Type	transmitter
Other characteristics	passive
Frequency (Hz)	1610000000 - 1610000000
Gain (dB)	12 - 12
