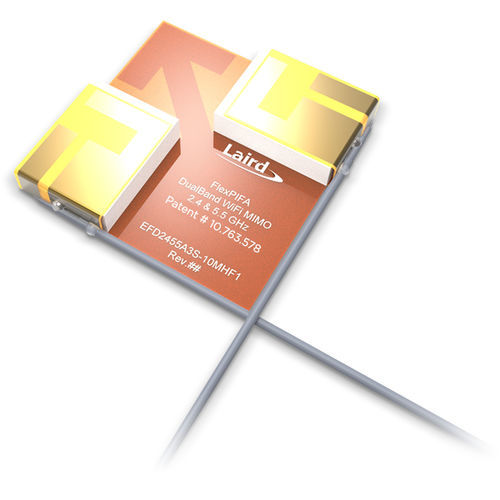

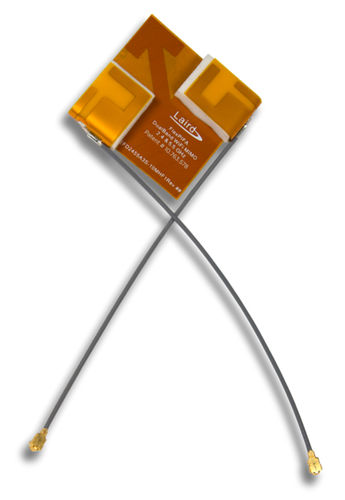

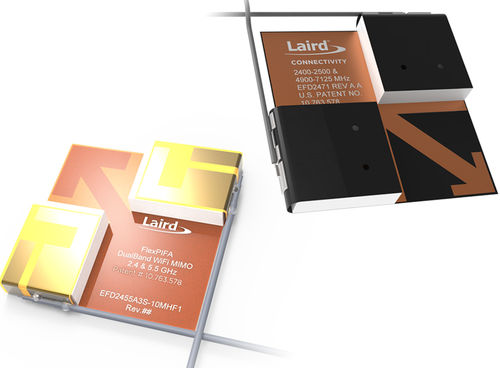

The world’s first Flexible PIFA antenna for Wi-Fi MIMO applications (patented). The FlexMIMO is specifically designed for 802.11 a/b/g/n, 802.11ac, and now Wi-Fi 6E modules that use MIMO or Wi-Fi Diversity. The flexible PIFA design provides for consistent performance across a broad array of enclosures and enables adhering the antenna to flat and curved surfaces. The FlexMIMO drastically simplifies the size, cost and technical requirements for implementing the two antennas required for 802.11 MIMO radio applications as the proper orientation and spacing between the two integrated antenna elements is already optimized for MIMO radio performance, giving you the best possible range and throughput.

Our new FlexMIMO 6E supports the full Wi-Fi spectrum of 2400-2500, 4900-5925, and 5925-7125 MHz frequency bands, an ideal solution for MIMO Wi-Fi applications with future-proofing for emerging 6E frequencies. Designed for rapid integration of a 2 antenna MIMO system into space-constrained housings, the flexible, adhesive backed antennas are available with MHF1 or MHF4L connectors, providing multiple installation solutions for IoT manufacturers. FlexMIMO technology provides consistent performance across all three Wi-Fi bands for a solid and reliable connection at all times.

Parameter Name	Parameter Value
Network	radio MIMO WiFi
Type	omnidirectional internal
Other characteristics	flexible linear polarized
Frequency (Hz)	2400000000 - 7125000000
Gain (dB)	2.2 - 3.8
