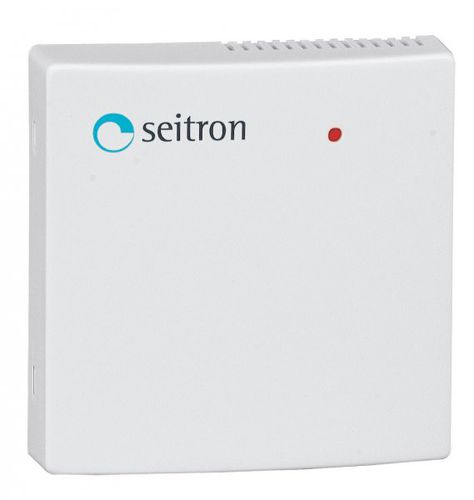

Active antenna for DLP modules
868,150 MHz receiving relay module antenna for DLP relay module, equipped with a 5mt cable.
It can be configured to make different jobs:
* Repeater: Relays radio commands received by one or more wireless devices, for range problems in harsh environments or doubling the actual range.
* Receiver for home automation: this antenna can be connected to a pc or a home automation controller, via RS485 bus; the home automation controller receives all the commands coming from wireless thermostats, and then drives the regulation system outputs and optionally features a user interface.
Technical features
• - Transmission frequency 868,150 MHz
• - Bicolour LED indicator Active module/status
• - Protection grade IP30
• - Dimensions H85 W85 D31 mm
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Network |
radio
|
| Other characteristics |
active
|
| Applications |
for wireless networks
|
| Frequency (Hz) |
868.2 - 868.2
|
