Radiation-resistant optical transceivers

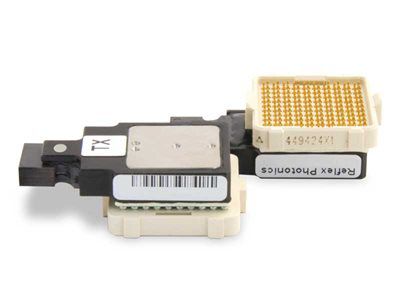

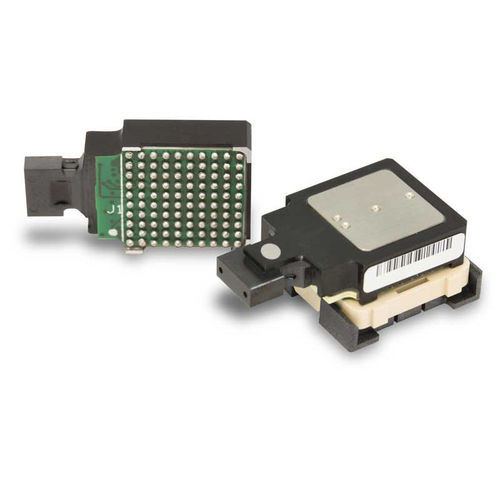

The SpaceABLE® SM radiation resistant transceivers are engineered to withstand radiation doses >100 krad (Si). The SpaceABLE SM embedded optical modules are rugged devices offering high bandwidth (greater than 120 Gbps) in a chip-size package. All devices are tested following ECSS process and lot acceptance testing, and component pre-screening is done for every batch of transceivers sold for this application.
Features & Benefits
- Small: Less than 5 mm high
- Rugged: withstand radiation doses >100 krad (Si) and qualified per MIL-STD 883 shock and vibration
- Expected life: up to 20 years
- Cold start temperature: –55ºC
- Performance: up to 10.3125 Gbps/lane from –40ºC to 100ºC
- Sensitivity: –9 dBm for BER 10–12
- Low power consumption: 85 mW/lane (<10 pJ per bit))
- 4 TRX (4+4)-lane per device (40G, full duplex)
- 12 TX or 12 RX lane per device (120G)
- Multimode 850 nm wavelength laser
- Standard MT parallel fiber connector
- Surface mountable or pluggable
- RoHS or tin-lead
- Monitoring: LOS, RSSI, temperature, etc
Applications
- High-throughput communication satellites
- Internet of Space
- VPX single board computers
- High I/O density, high BW communication links
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Network |
for fiber optics
|
| Applications |
|
| Number of channels |
|
| Other characteristics |
|
