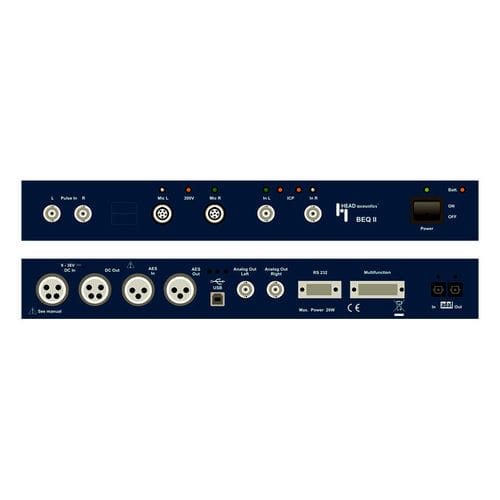

Binaural, digital equalizer with 24 bit technology and USB interface
The digital equalizer BEQ II.1 combines the characteristics of an equalizer, a two-channel front end and an A/D converter into one mobile and very versatile measurement tool.
Binaural, aurally-accurate recordings can be conducted easily with BEQ II. The AES/EBU interface allows a quick and easy expansion into a four-channel system, e.g. with the HMS III or
HMS IV. Via the ADAT interface, up to four BEQ II units can be connected, allowing for eight-channel recordings.
Integrated signal conditioning allows common measurement sensors (Microphone, Line, ICP®) to be directly connected to the front end. In addition, separate pulse inputs are available e.g. for RPM data acquisition.
Thanks to the high-performance built-in battery - external DC power supply is also possible - and its low weight, BEQ II.1 is the ideal tool for either mobile or stationary operation.

Applications
Sound and vibration analysis
Acoustic environment protection
Troubleshooting
Sound Engineering
Quality control

Parameter Name	Parameter Value
Format	rack-mount
Options	digital USB
