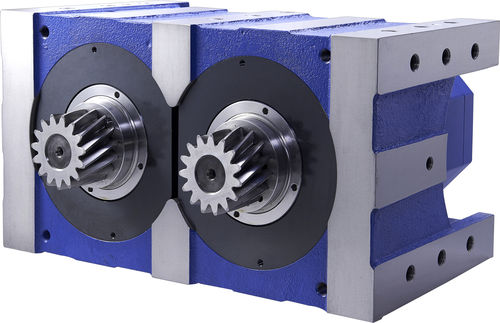

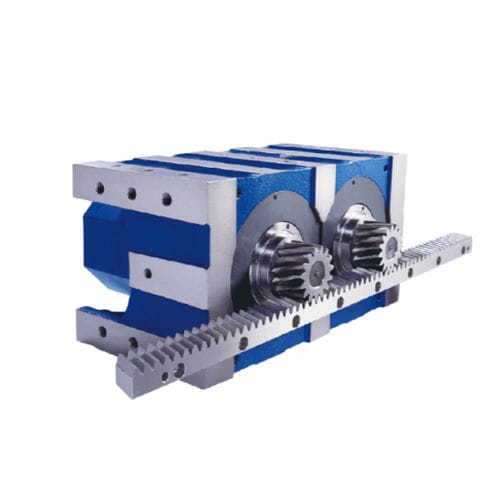

DMU series could reach zero-backlash with high accuracy

Characteristic:

1. Enclosed Gearbox
Specially designed machinery is able to eliminate clearance from the gearbox inner and from between pinions and racks. This completely supplements and clears up the backlash of manufacture or/and installation while gearboxes drive both pinions and racks.
Saving
Mechanical preload system, driven by a single servo motor, can reach the goal of Electrical preload system, save controller and driver cost.
Backlash eliminating enables processing tool tracks stable, which prolongs tool life.

2. Easy to set up
Parameter setting can be easier for enclosed mechanical preload system, driven by a single servo motor, than electrical preload system.

3. Backlash reducing enables improved processing surface smoothness and accuracy.

4. Huge Torsional Rigidity
For the well-designed structure and high duty material of taper roller bearing, the output shaft of the reducer can bear the huge axial and radial load, which could be wide application.


5. Precise Positioning
Precision gear grinding tooth surface smooth, precise tooth.
For an excellent design, high accuracy and low moments of inertia.

6. Efficiency >93%

Parameter Name	Parameter Value
Type	planetary
Shaft orientation	coaxial
Torque (Nm)	10000 - 10000 500 - 1000 1000 - 2000 2000 - 5000 5000 - 10000
Shaft configuration	pinion shaft dual-shaft multiple-output
Number of stages	single-stage three-stage two-stage
Performance	high-torque high-precision high-performance low-noise low-backlash high-efficiency maintenance-free high-power for heavy loads high-rigidity high-capacity zero-backlash
Applications	for servo motors for heavy-duty applications for industrial applications for rack-and-pinion drives for machines for lathes
Other characteristics	compact industrial modular for machine tools high-quality for heavy loads double for grinding machines
Rotational speed (rpm)	3500 - 4000
