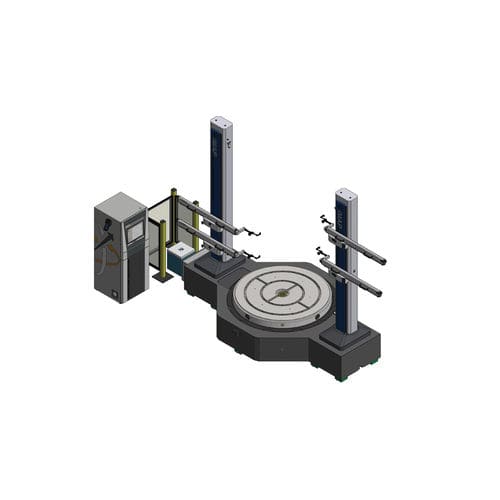

iMAP

INTEGRATED TURBINE ROTOR MEASUREMENT AND ASSEMBLY PLATFORMS

Improve productivity and achieve higher levels of quality by reducing inspection times and the need for costly teardowns due to inefficient rotor assembly.

iMAP is the definitive system for productivity improvement in turbine rotor assembly for large volume and heavy loads such as passenger jets and gas turbines.

Measurement Capacity:

- Maximum measurement volume up to Ø3,600mm x 6,000mm
- Maximum load capacity up to 35,000kgs
- Motorised axis

Parameter Name	Parameter Value
Type	quality measurement
Other characteristics	heavy-duty
