About

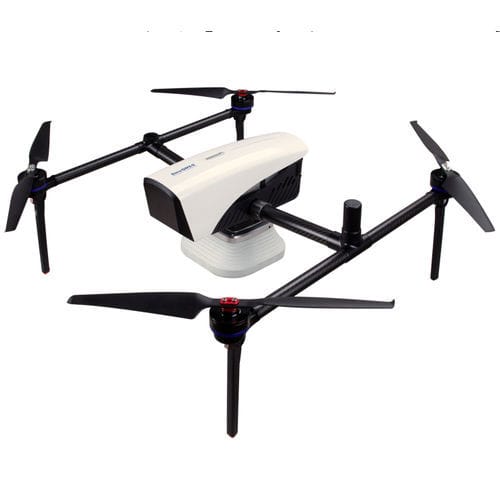

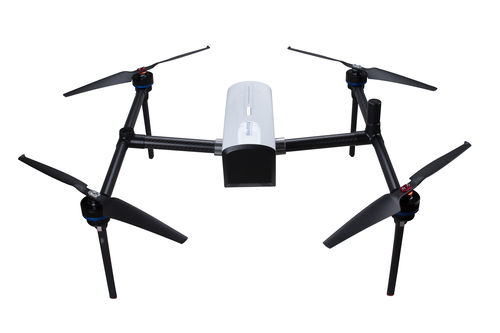

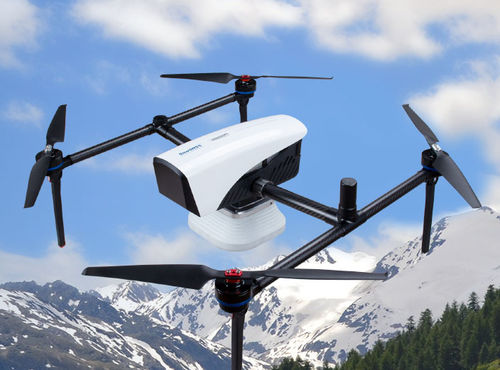

Based on K8 platform, ComNav released a powerful and reliable UAV solution capable for photo position at centimeter level, providing high-precision results for the users.
Featuring with high accuracy, strong compatibility, and long endurance, it can meet the requirements of many different applications, including topographic survey, urban construction, forestry investigation, emergency rescue, 3D modeling, mining surveying, etc.
GNSS ENGINE
The high precision GNSS K8 module empowered to RTK/PPK technology. On the one side, E300 can provide centimeter-level positioning results without GCPs. On the other side, RTK/PPK are the dual backup, one as a failsafe for another, to ensures the acquisition of data.
The in-built antenna offset the correction, thus, further increasing precision of photo position.
Meanwhile, EVENT Synchronization Technology can reduce camera trigger error.
PROFESSIONAL PAYLOAD

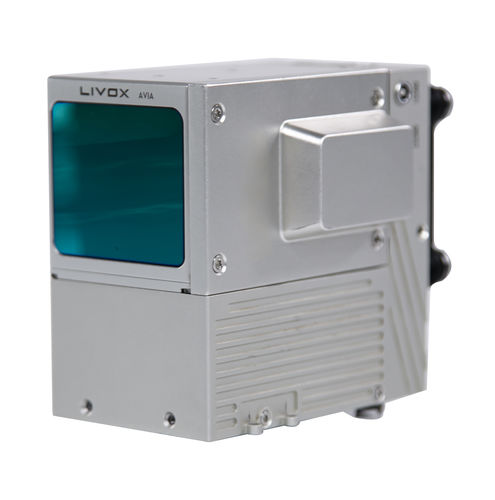

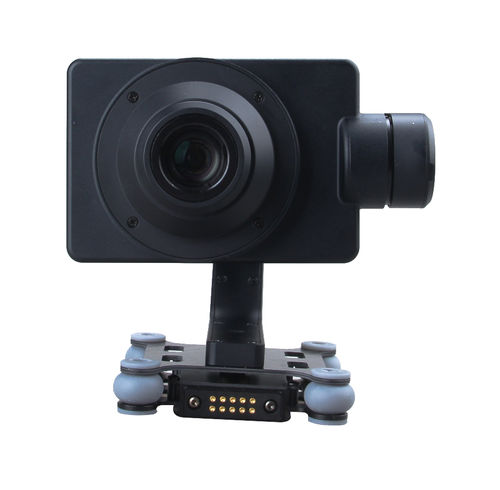

The platform’s payload bay is compatible with a wide range of camaras, including C20, C50 and LiAir VH2 and others. Payloads can be quickly and easily swapped in the field for maximum versatility, which can meet the requirements of different applications.
FLIGHT CONTROL SOFTWARE
Partnered flight control software equipped with clear interface, easy workflow, powerful fight control capability, which can completely satisfy the the requirements of high-efficiency, high-quality and high-precision aerial survey operations.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
quadcopter
|
| Applications |
|
| Other characteristics |
|
| Endurance (min) |
50 - 60
|
| Payload (kg) |
0 - 3
|
