1. physical dimension: 95*84*48mm

2. Reading window size: 59*46mm

3. Installation method: Embedded installation

4. Materials: ABS

5. Hole Size: 67.5*88mm

6. Corner radius: 4.27mm

7. Image Sensor: 300,000 pixel CMOS (640*480)

8. Print contrast: ≥ 25%

9. Reading accuracy: ≥ 7mil

10. Reading speed: 70ms/times

This Touchless Embedded QR code scanner MTX200 carries a 2 years warranty and durable maintenance and repair support.
We can provide OEM and ODM services. We also provide biometric devices, such as IC/ID card readers, fingerprint scanners, QR code scanners, face recognition cameras, and so on.

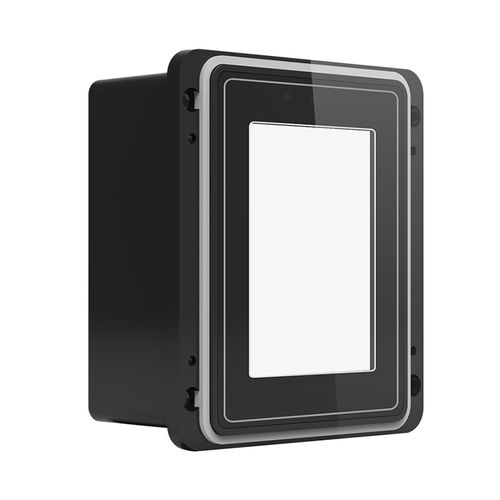

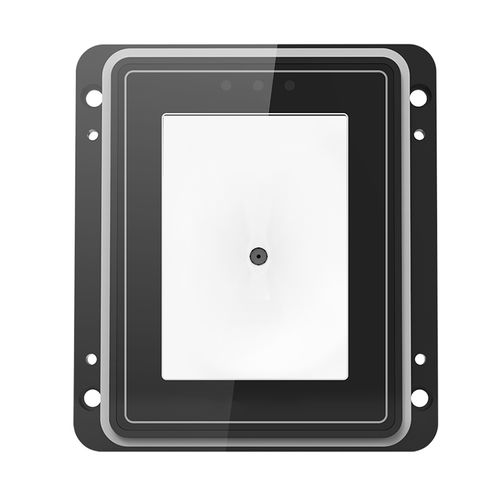

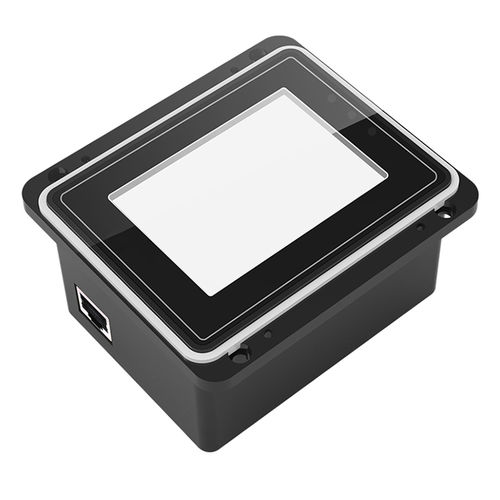

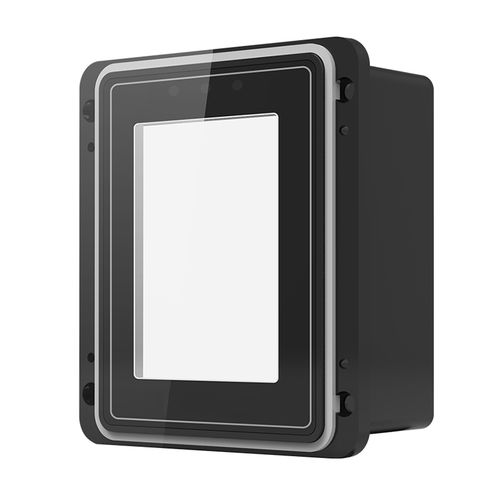

MTX200 is an embedded QR code scanner, which adopts the self-developed core decoding technology, and can support the rapid reading of one-dimensional code and QR code systems at the same time. Its surface is made of tempered glass, which has good light transmittance, scratch resistance, and fall resistance. It can be used for multiple purposes. If you need this QR code scanner for the turnstile, please contact us.

This QR code scanner can be equipped with an NFC card swiping function (radio frequency 13.56 MHz non-contact IC card, M1 sensor card, NFC mobile phone, and ID card), which can adapt to complex comprehensive application scenarios.

QR code scanner MTX200 can recognize various code systems, such as one-dimensional code, two-dimensional code, mobile phone screen code, paper code, etc, 70 times per second, and scan it as you want from 360 degrees. Recognizable distance of between 3-10cm. Multiple feedback mechanisms enhance the interactive experience.

Parameter Name	Parameter Value
Type	QR
Other characteristics	embedded
